Product Parameters
|
Model |
HL1000-800 |
|
Production Capacity (T/H) |
10-20 |
|
Main Pulley (mm) |
1200 |
|
Throwing Knife (piece) |
2 |
|
Discharge Belt Width (mm) |
1000 |
|
Discharge Conveying Length (mm) |
7500 |
|
Head Discharge Height (mm) |
4500 |
|
Electrical Remote Control |
Automatic feeding |
|
Hydraulic Oil Tank Capacity (L) |
300 |
|
Dimensions (mm) |
11000*2490*3500 |
Product Features and Applications
Adopts staggered fixed blades + comb-tooth anti-winding cutter rollers, solving the pain point of frequent machine stoppages for cleaning corn stalks
The straw crusher can replace screens with different aperture sizes, freely switching between 0.5–50mm output particle size
Mainly used in planting bases, on-site straw return to the field, biomass power plants, etc
Product Details
01.

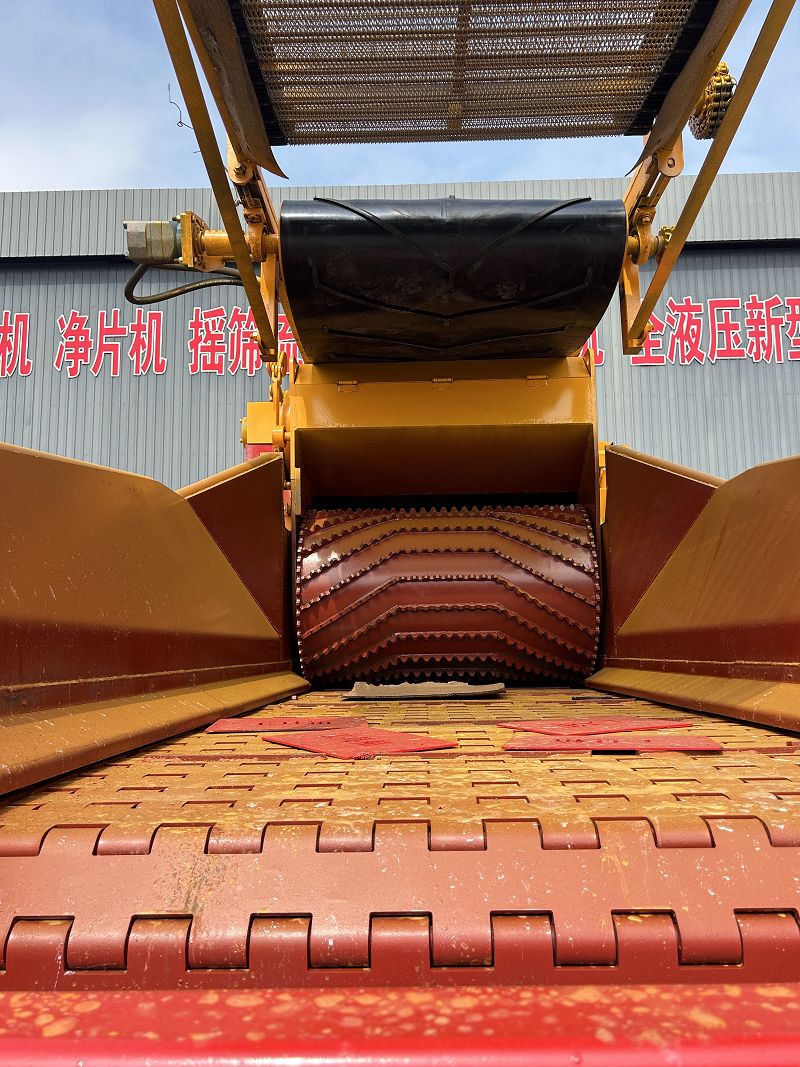

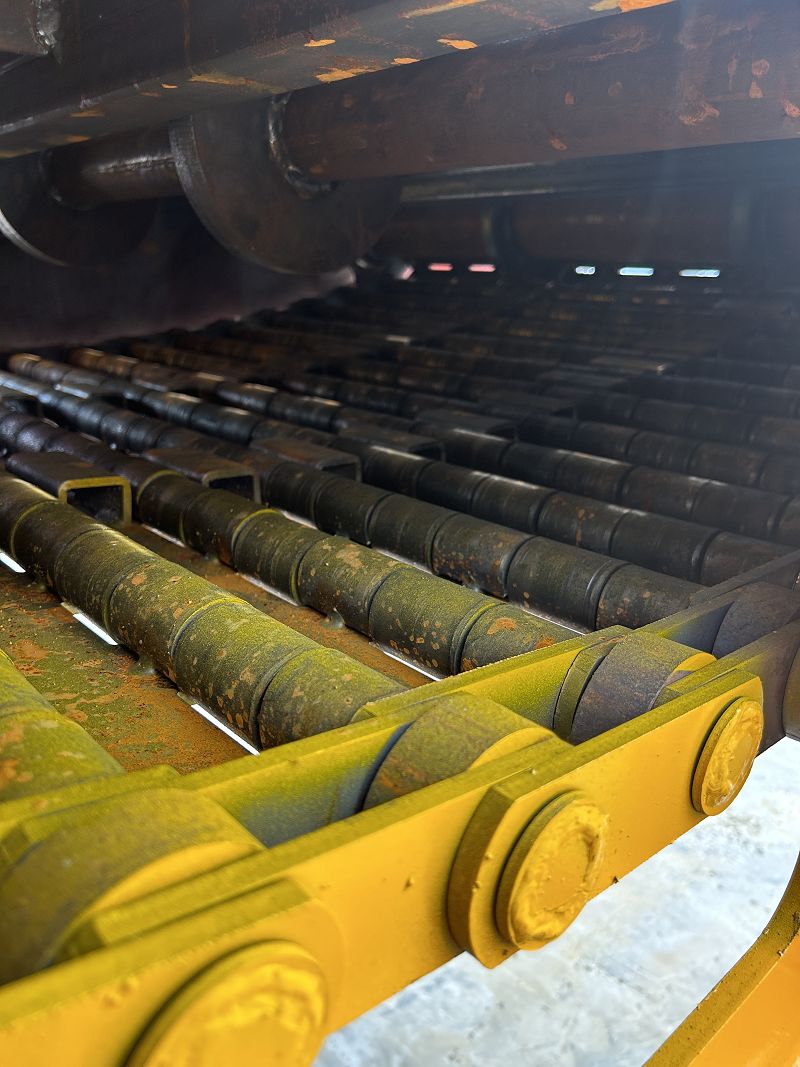

Uses hydraulic chain plates or hydraulic belts for forced feeding, equipped with hydraulic pressure rollers to prevent backflow and automatic overload reversal to clear blockages
02.
The volume of straw is reduced by more than 70% after crushing, significantly reducing the number of transport trips, fuel, and labor costs
03.
The hammers and throwing knives are made of high-manganese steel alloy, double-sided and reversible, and can be reused after wear and resharpening
Product Supporting (Certificates/Photos)
After-sales Service (Videos or Photos)
FAQ
1) What is the customs code?
A: 8465960000
2)Can it crush both dry and wet straw? What is the maximum moisture content?
A: Both dry and wet straw can be crushed. It is recommended that the moisture content of the material be controlled between 10-35%
3)Can the tracked straw crusher be used for long-distance road transport?
A: No, it cannot be used directly on public roads
4)What is the fuel consumption of a diesel-powered mobile straw crusher?
A: Fuel consumption depends on the moisture content of the raw materials and the output, approximately 1L/T
5)Can the machine mix and crush straw with fine branches?
A: Yes, it can be mixed and crushed simultaneously
6)What are the spare parts? Are they provided in the factory?
A: Spare parts list: crushing blades, hammers, sieve, chain plate, feed belt, pressure rollers, bearings, sealing oil seals, hydraulic filter element, blade fastening bolts. A complete set of spare vulnerable parts is not included with the main unit
