Product parameters
|
Model |
HL1000-800 |
|

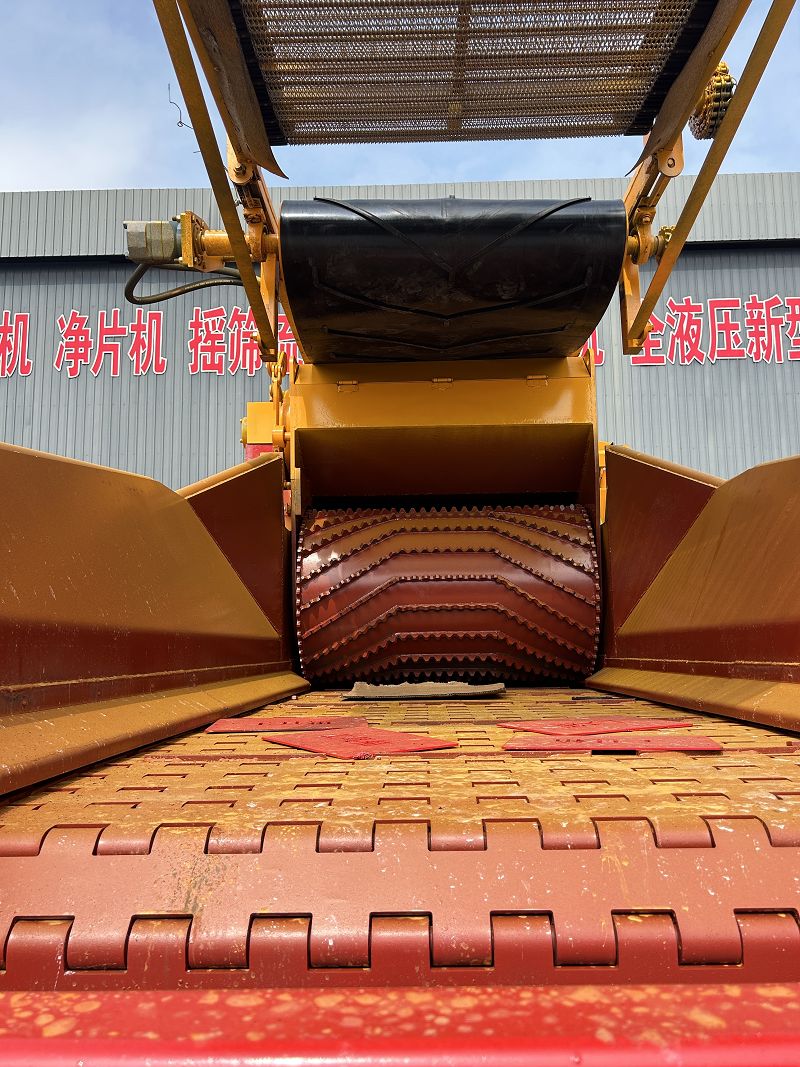

Feeding system |
belt feeding |
|
Feed chute width (mm) |
1000 |
|
Feed chute length (mm) |
5000 |
|
Feed port (mm) |
1000*600 |
|
Feed speed (r/min) |
0-33 |
|
Thickness of host steel plate (mm) |
25 |
|
Knife roller diameter (mm) |
800 |
|
Knife roller speed (rpm) |
250 |
|
Dimensions (mm) |
11000*2490*3500 |
Product features and applications

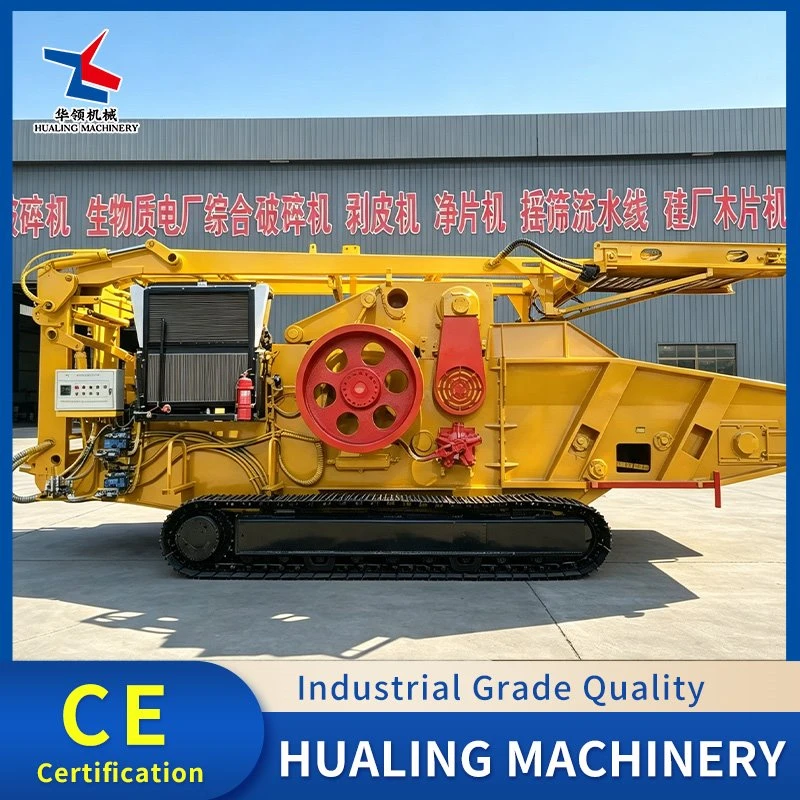

The tree branch crusher has a thickened shaft and enlarged bearings on the original basis, making it durable.
You can choose a fixed motor version or a mobile diesel engine version. There are multiple options. Customers can choose according to their own needs.
Mainly suitable for courtyards, private farms, large-scale orchards, woodlands, etc
Product details
01.
Use highly wear-resistant throwing knives, optimal feeding speed and professional matching
02.

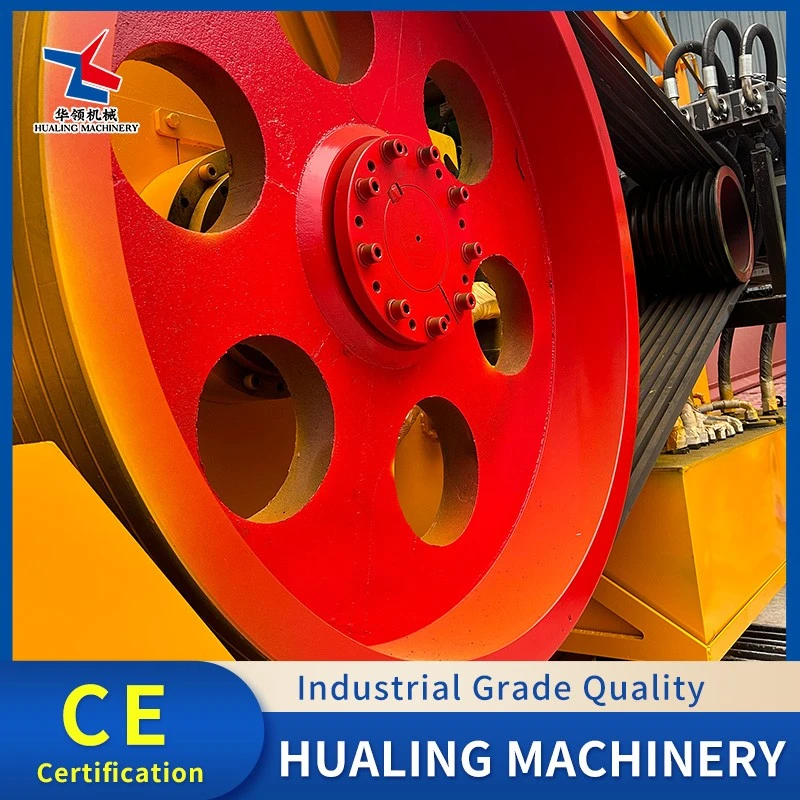

The size of the sheet can be adjusted, and the 8-slot pulley makes production more stable
03.

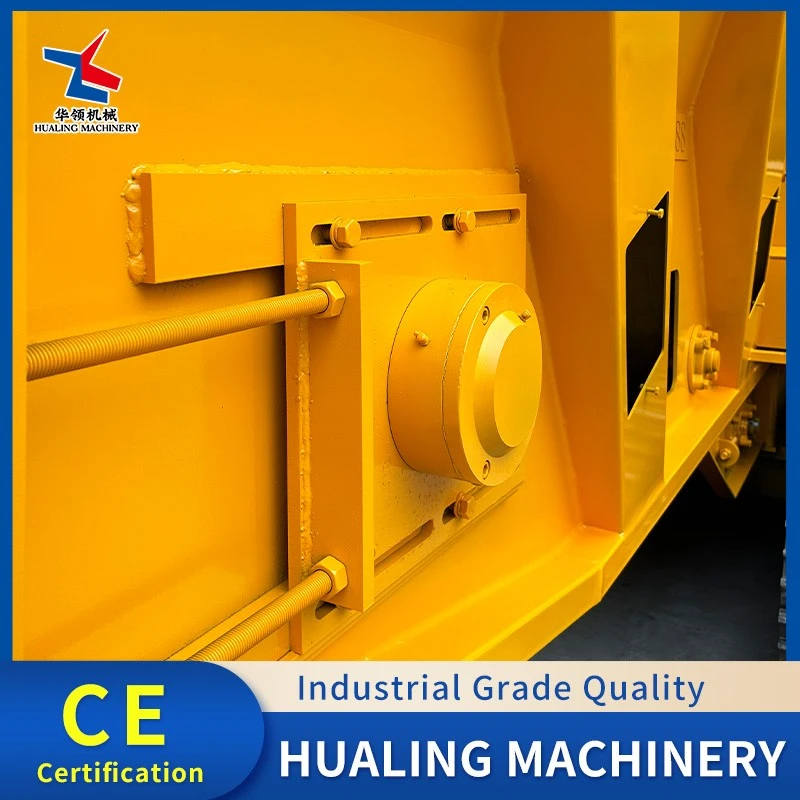

The rotor is heavier, the spindle is thicker, and the bottom knife is wider and thicker for more wear resistance
Product support(certificate/pictures)
After-sales service: video or photos
FAQ
1) How to choose between a stationary motor version of a branch shredder and a mobile diesel version?
A: Stationary motor version: The site is fixed within the factory area; raw materials are transported centrally to the factory for processing, eliminating the need for frequent relocation. Mobile diesel version: Requires on-site processing in woodlands or green areas, necessitating frequent relocation, and the raw materials are dispersed

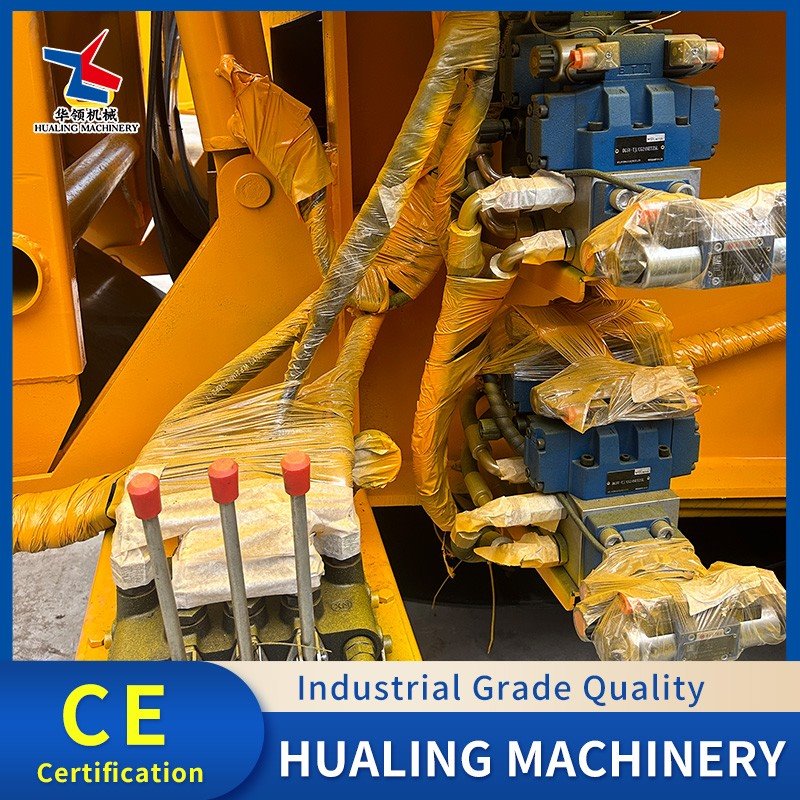

2)What are the advantages of hydraulic feeding over manual feeding?
A: ①Stronger clamping force, less prone to slippage and rebound.
②Overload protection and automatic reverse function.
③Stepless speed adjustment to adapt to different materials.
3)What is the machine's hourly output?
A: Output is affected by the thickness, dryness, and impurities of the branches
4)What are the hourly fuel and electricity consumption?
A: Fuel consumption: Depends on output, approximately 1L/T. Power consumption: Approximately 60% of rated power; less power is used during idling, not full load operation
5)How to perform routine maintenance?

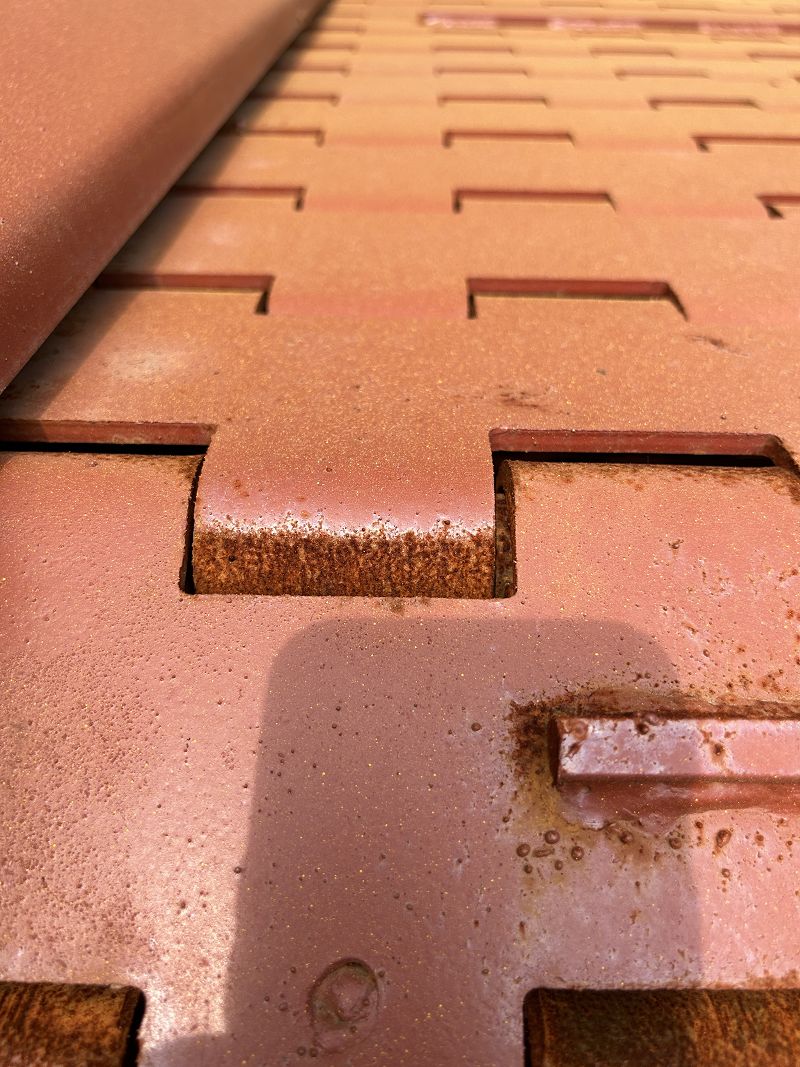

A: ①Before each shift: Check the blades for tightness, belts/chain plates, and screens for damage.
②After each shift: Clean the cavity, feeding mechanism, and heat dissipation areas of sawdust and debris.
③Regularly: Apply grease to bearings, sprockets, and hinges as needed
6)Can the machine's output size and coarseness be adjusted?
A: Yes, it can be adjusted. This is mainly achieved by changing the screen mesh size to alter the output particle size
