Product Parameters
|
Model |
HL3600 |
HL3300 |
|
Spindle Working Speed(r/min) |
760 |
760 |
|
Maximum Oil Consumption (L/H) |
35-60 |
25-40 |
|
Cutting Roller Size (mm) |
2150*750 |
1500*750 |
|
Cutter Size (mm) |
465*220*20 |
465*220*20 |
|
Bottom Blade Size (mm) |
700*80*30 |
700*80*30 |
|
Bottom Blade Screw (piece) |
16 |
16 |
|
Feed Inlet Diameter (mm) |
3600 |
3600 |
|
Cutting Edge Diameter (mm) |
2400 |
1800 |
Product Features and Applications
This shredder can process both dry and wet waste wood, with a moisture content of 0-60%
Equipped with a high-power power system and a heavy-duty shredder host, ensuring high shredding efficiency
Primarily suitable for waste wood recycling companies, recycling points, wood processing plants/furniture factories, demolition sites, etc

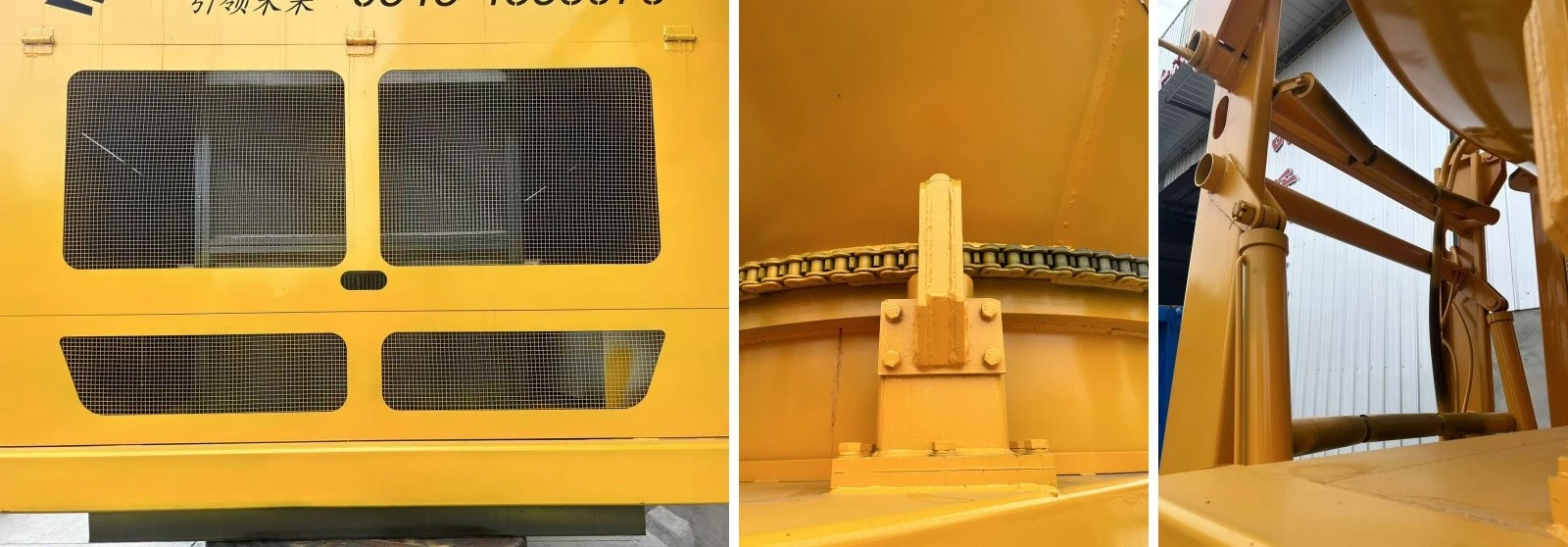

Product Details
01.
Adjustable feed speed of 0-4.5 m/min; standard hydraulic pressure gauge monitors feed pressure in real time to ensure stable feeding
02.

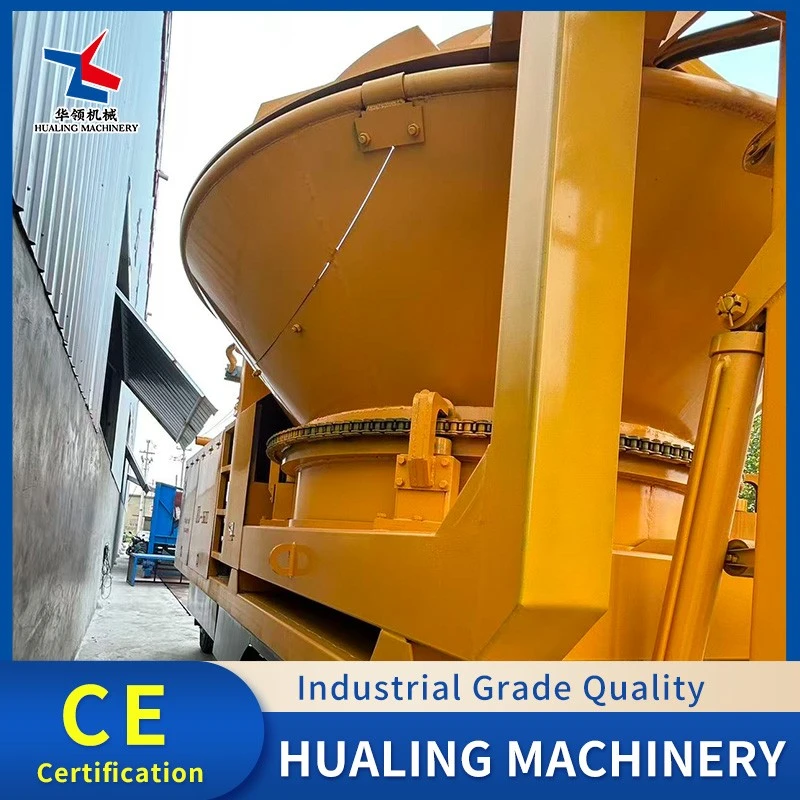

The main crushing chamber is made of thickened manganese steel, which is wear-resistant and impact-resistant, extending the service life of the main unit
03.
Production capacity is affected by material hardness, moisture content, and feed speed; therefore, different models have different hourly output tons
Product Supporting (Certificates/Visit Photos)
After-Sales Service (Video or Photos)
FAQ
1) What mainly affects the machine's capacity?
A:①The material itself ②Feeding method ③Cutter condition ④Screen aperture
2)According to the crushing process, what categories can waste wood shredders be divided into?
A:①Shear-type wood chipper (disc cutter roller type) ②Hammer crusher/hammer impact template crusher ③Integrated shredder (dual-shaft shear shredder)
3)What percentage of moisture content can it process in both dry and wet waste wood?
A: Generally applicable moisture content 10%–40%
4)If the screen at the outlet is changed, what range should the output particle size be controlled within?
A: Standard configuration screen aperture 10mm～100mm, freely switchable
5)Which type of waste wood shredder should be chosen for complex terrains such as muddy sites, mountainous areas, and demolition sites?
A: Directly select the fully hydraulic crawler self-propelled diesel waste template crusher
6)How large is the diesel engine's fuel tank? Does it need frequent refueling? How often should it be refueled?
A: Mobile crushers come standard with an 80L-120L oil tank, which does not require frequent refueling. The frequency of refueling depends on the workload
