Product Parameters
|
Model |
HL215 |
HL216 |
HL218 |
HL218D |
|
Roller Diameter (mm) |
500 |
700 |
800 |
800 |
|
Number of Cutters (pieces) |
2 |
3 |
3 |
3 |
|
Feed Size (mm) |
420*240 |
540*260 |
700*280 |
750*280 |
|
Roller Speed(r/min) |
590 |
590 |
650 |
650 |
|
Feed Speed (m/min) |
38 |
45 |
45 |
45 |
|
Bamboo Chip Length (mm) |
30-40 |
30-50 |
30-50 |
30-50 |
|
Production Capacity(T/H) |
5-8 |
8-15 |
15-30 |
30-50 |
|
Main motor power(kw) |
45 |
55 |
110 |
132 |
|
Dimensions(mm) |
2000*1700*900 |
2600*2000*1500 |
2800*2200*1650 |
2800*2250*1650 |
Product Features and Applications
Processed bamboo chips have high surface smoothness and good bamboo fiber continuity, resulting in a high qualification rate and low powder content
Not limited by site, can be fixed or mobile, depending on the customer's actual situation
Bamboo chip machine is mainly used in the bamboo product processing industry, bamboo charcoal, bamboo chemical industry, etc
Product Details
01.

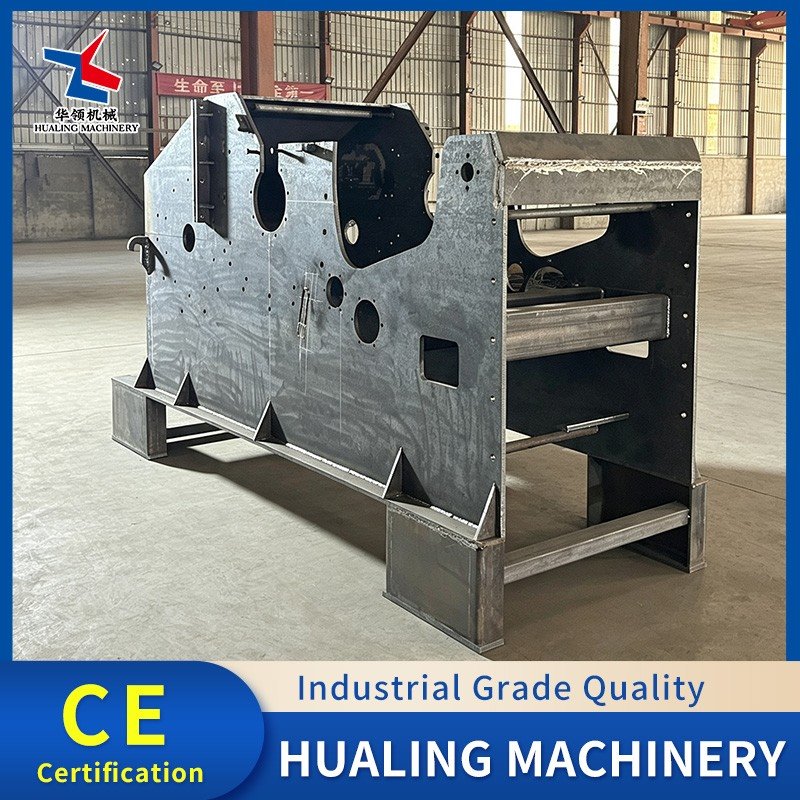

Thickened steel plate welded body, strong stability, reduced noise and vibration
02.

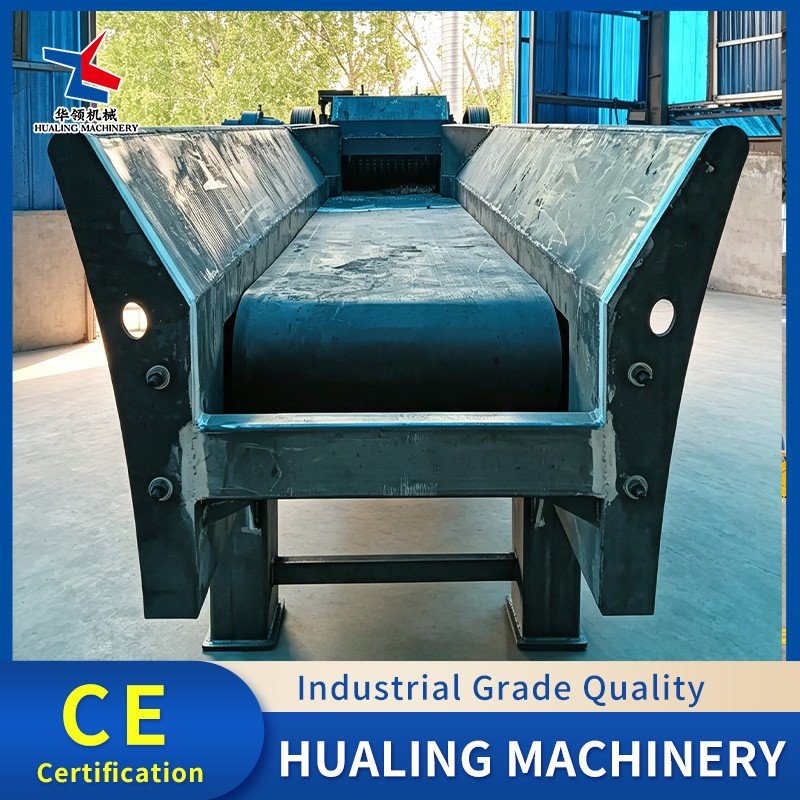

Widened feed inlet system, easily handling large-diameter bamboo poles
03.
Bamboo chip machine screen is detachable, allowing for replacement with screens of different diameters to better sort and collect bamboo pieces of the desired size
Product Supporting (Certificates/Pictures)
After-Sales Service (Videos or Photos)
FAQ
1) Can the bamboo chip machine process both dry and wet bamboo?
A: Yes, it can process both dry and wet bamboo
2)Why do bamboo poles easily bounce out during feeding? What causes this?
A: ①The bamboo pole's surface is smooth and tough, resulting in insufficient clamping friction.
②The blades become dull, increasing cutting resistance, and the impact force bounces the bamboo pole back.
③The feeding angle is unsuitable, causing the bamboo pole to bounce due to oblique force
3)Should I choose the electric motor or diesel engine version?
A: If the site is fixed and the factory has a three-phase industrial power supply, prioritize the electric motor model. If the site has no power supply, or if it's a mobile operation in the field or in outdoor bamboo forests or mountains, choose the diesel engine model
4)Why is the output material sometimes coarse and sometimes fine?
A: ①The flying blades are worn or have nicks, resulting in inconsistent blade sharpness.
②The gap between the flying blade and the bottom blade is too large or uneven
③The screen is damaged or partially cracked, causing material leakage
5)Can the power supply voltage be customized?
A: Yes, it can be customized
6)Can the machine's exterior color be customized?
A: Yes, you can specify the paint color when ordering a new machine
7)Do I need to install the machine myself after delivery?
A: The main unit is pre-assembled at the factory; there is no need to disassemble the rotor cavity
8)How long is the machine's warranty?
A: Excluding easily damaged parts, the machine has a one-year warranty. Warranty parts damaged due to non-human factors will be repaired
