Product Parameters
|
Model |
1400-1100 |
1600-1100 |
1800-1100 |
|
Walking Device |
Towing Tire |
Towing Tire |
Towing Tire |
|
Main Motor Power (KW) |
200 |
250 |
315 |
|
Cutter Roller Speed (r/min) |
600 |
600 |
600 |
|
Number of Flying Cutters (pcs) |
6 |
6 |
6 |
|
Production Capacity (T/H) |
25-30 |
30-35 |
35-40 |
|
Feed Size (mm) |
1400 |
1600 |
1800 |
|
Rotor Diameter (mm) |
1100 |
1100 |
1100 |
Product Features and Applications
Standard traction for various trucks and tractors, compliant highway traction, low transportation costs for customers with short-distance relocation needs
Thickened load-bearing frame with shock-absorbing axles, stable body during crushing, consistent cutting accuracy
Can process various non-wood materials such as bulk straw, cotton stalks, reeds, etc., with a wide range of applications

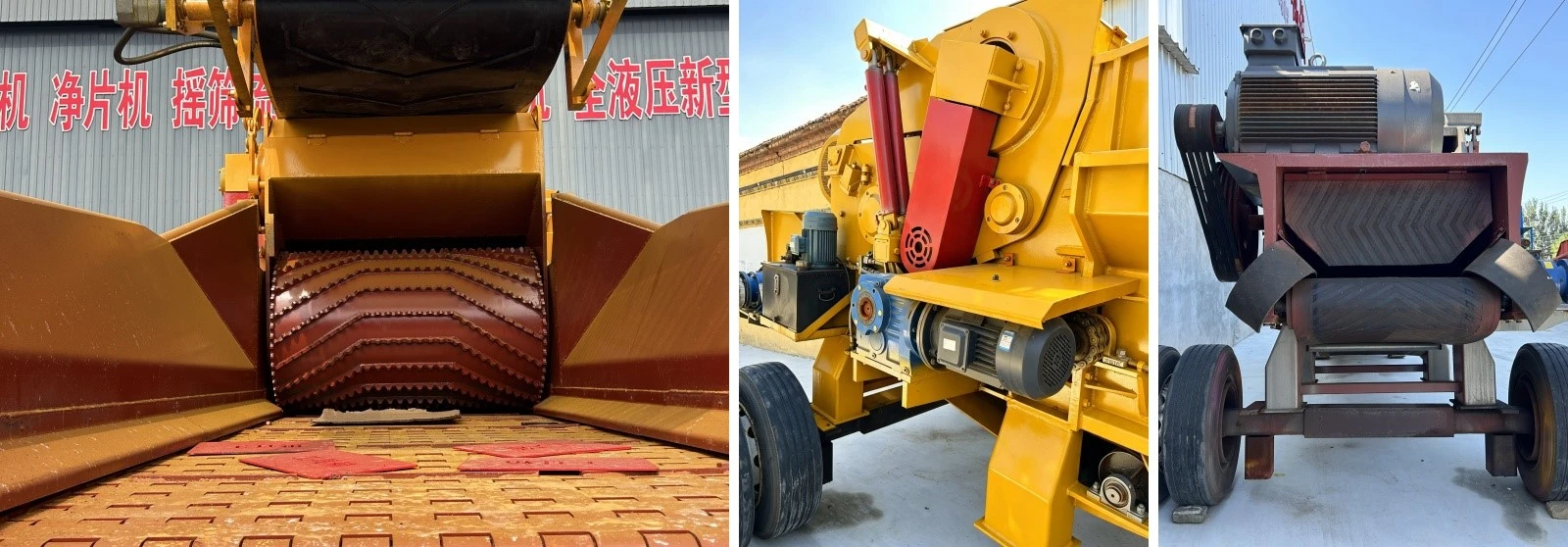

Product Details
01.
Hydraulic 180°rotating folding belt discharge system, discharge height 3.2–4.8m, direct connection to truck loading
02.
Blades, chain plates, sieve, tires, etc., can all be replaced individually, no need for overall assembly replacement, short downtime maintenance time
03.
Tire-type wood crusher uses a hydraulic belt feeding system, lower cost, lighter weight, suitable for clean green branches, dry miscellaneous wood, etc
Product Supporting(Certificates/Photos)
After-Sales Service (Video or Photos)
FAQ
1) How to choose between a chain-feed tire shredder and a belt-feed tire-type wood crusher?
A: If the material contains nails and molds, choose chain-feed; if the raw material is clean branches and logs, choose belt-feed
2)Can the tire-feed version be directly towed for long-distance road transport? Are any permits required?
A: Conventional towing tire shredders cannot be directly towed for long-distance road travel and cannot obtain the necessary permits
3)Can it operate in muddy forests or steep mountainous terrain?
A: Not suitable for muddy forests or steep mountain slopes
4)Is it prone to material blockage? How to prevent it?
A: Causes of material blockage:
① Large, undivided stacks of formwork being forcibly fed
②Wet wood or materials containing soil adhering to the crushing chamber
③Dulled blades increasing crushing resistance
Preventive measures:
1. Cut and disassemble large formwork pieces in advance; prohibit direct feeding of oversized materials
2. Control the feeding speed of wet materials, feeding intermittently to avoid clogging the screen
3. Clean the feeding chain/belt, crushing chamber, and screen of wood chips after each shift
5) What is the hourly output? What is the fuel consumption?
A: Output is affected by the thickness of the formwork, whether it contains a large number of nails, and whether feeding is continuous. Fuel consumption is related to output, approximately 1L/T
6)Are the tires prone to wear and tear? Are replacement costs high?
A: Under normal towing conditions on hardened and leveled construction sites, tire wear is very slow. However, prolonged towing on surfaces with sharp stones or construction waste will accelerate tread scratches and sidewall wear. Sufficient stock is available on the market
