Product Parameters
|

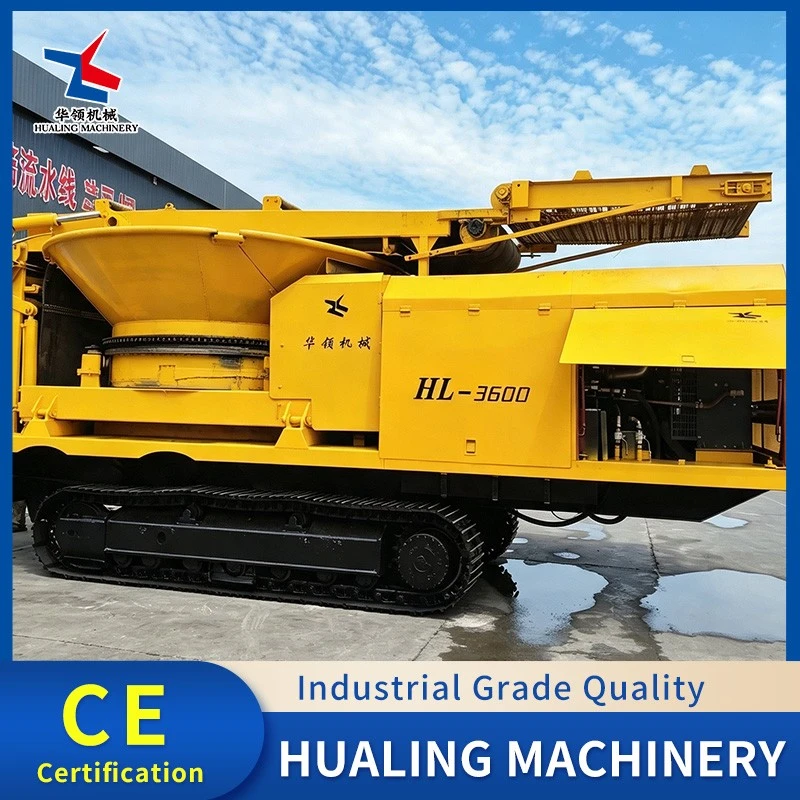

Model |
HL3600 |
HL3300 |
|
Maximum Fuel Consumption (L/H) |
35-60 |
25-40 |
|
Bottom Screw (piece) |
16 |
16 |
|
Feed Opening Size (mm) |
Diameter: 3600 |
Diameter: 3600 |
|
Cutting Edge Size (mm) |
Diameter: 2400 |
Diameter: 1800 |
|
Feed Disc Depth (mm) |
1500 |
1500 |
|
Number of Feed Disc Motors |
1 |
1 |
|
Distance between Feed Opening and Ground (mm) |
2850 |
2850 |
|
Feed Control |
Variable Frequency Remote Control |
Variable Frequency Remote Control |
|
Dimensions (mm) |
7800*3600*3700 |
7000*3200*3500 |
Product Features and Applications
The hydraulic oil tank adopts a large-capacity hydraulic oil tank, ensuring normal oil temperature during machine operation

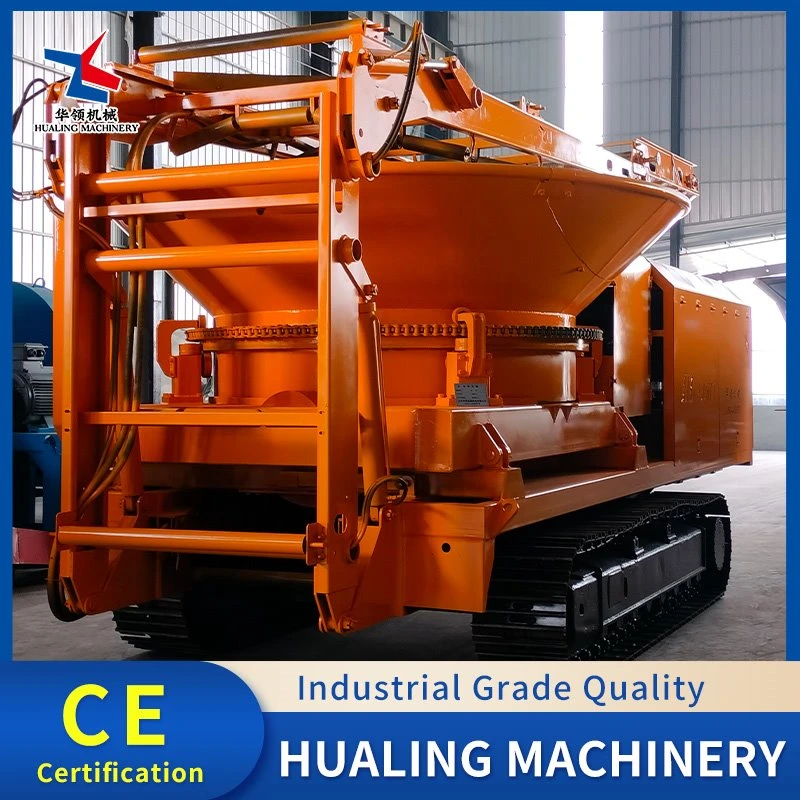

Tree root crusher adopts automated control, highly durable, and can achieve efficient crushing
Mainly used in biomass power plants, bamboo and wood processing plants, and garden waste disposal
Product Details
01.
The maximum processing diameter is 2400mm, large tree roots are crushed into shape in one go without secondary processing, resulting in extremely high crushing efficiency
02.
It has a heightened, widened, and thickened feeding system, which can easily handle large and irregular tree stumps, roots, and crowns
03.
Tree root crusher has intelligent control; it can automatically reverse when jammed, stop the machine when the root is overloaded, and alarm for any malfunction
Product Supporting (Certificates/Photos)
After-Sales Service (Videos or Photos)
FAQ
1) Can it crush tree stumps with soil?
A: Yes, it can crush tree stumps with soil.
2)Can it crush both dry and wet tree roots?
A: Yes, it can crush both dry and wet tree roots
3)Can the tree root crusher only process tree roots? What else can it process?
A: Not just tree roots. It can also process tree stumps, logs, branches, bark, construction templates, scraps, and straw
4)Our country doesn't use 380V; can a custom power supply voltage be provided?
A: Yes, we can customize it according to customer needs
5)Can a single machine crush all kinds of mixed wood waste with tree roots?
A: The disc tree root crusher can crush tree roots and mixed wood waste together
6)Does the new machine require installation after delivery? Is installation complicated?
A: The main unit is pre-assembled at the factory; the main unit cavity and rotor do not need assembly
7)Crushing tree roots produces a lot of dust; how can this be avoided?
A: ①Optional sprinkler system
②Install dustproof covers and barriers on the equipment to reduce dust dispersion
③Personnel must wear dustproof protective equipment during operation
8) Can the output coarseness be adjusted?
A: The discharge fineness can be adjusted, mainly by changing to screens with different aperture sizes
