Product Parameters
|
Model |
700-1000 |
700-1300 |
|
Main Power (KW) |
90 |
110 / 132 |
|
Output (T) |
3 |
5 |
|
Rotor Diameter (mm) |
700 |
700 |
|
Number of Hammers (piece) |
96 |
132 |
|
Speed (min / r) |
2880 |
2880 |
|
Motor Connection Method |
Direct coupling |
Direct coupling |
|
Electrical Cabinet Settings |
Soft start inverter, automatic feeding including short circuit leakage and overload protection |
Soft start inverter, automatic feeding including short circuit leakage and overload protection |
|
Sieve Size (mm) |
960*820*2piece |
1300*820*2piece |
|
Feed Inlet Size (mm) |
960*500 |
1300*500 |
|
Dimensions (mm) |
2600*1300*2600 |
3000*1300*2600 |
Product Features and Applications
Standard configuration includes a cyclone dust removal system, resulting in finer grinding, less dust, cleaner wood powder, and easier collection
Standard configuration includes a sieve with interchangeable mesh sizes for easy maintenance
Can process sawdust, bark, hay, corn cobs, straw, and other fibrous dry materials
Product Details
01.
Wood powder mill rotor contains multiple layers of alloy blades, hammers, and grinding wheels, resulting in a complex structure that produces powder without the need for secondary manual processing
02.

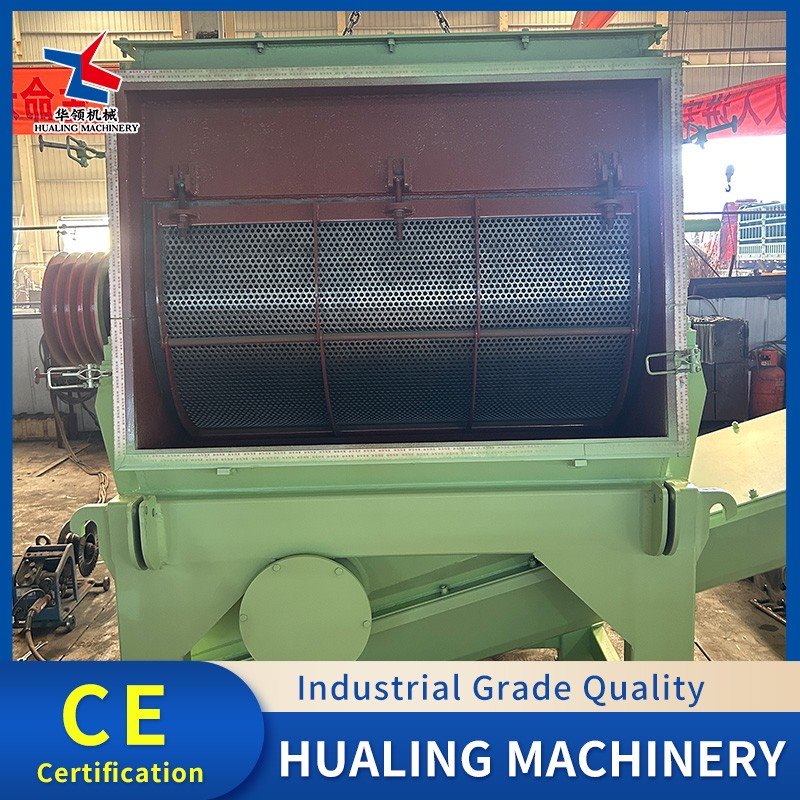

Small wood hammer mill has a built-in grading sieve function, which can control the fineness of the powder. Coarse material collected by the sieve can be recycled for secondary processing into fine powder
03.
Small wood hammer mill's feeding system uses a self-priming, anti-metal feeding system to prevent damage to the rotor from metal materials such as nails and iron blocks
Product Supporting (certificates / factory video)
After-Sales Service (Pictures or videos)
FAQ
1) Can the rotor diameter of the wood hammer mill be changed?
A: The rotor diameter is fixed at the factory and cannot be changed later
2)Can the number of hammer blades be changed?
A: The number and arrangement of the hammer blades are fixed at the factory and it is not recommended to add, remove, or change them arbitrarily
3)What is the standard operating sequence for starting the machine? What are the consequences of an incorrect sequence?
A: ①Inspect the entire machine
②Start under no-load
③After running under no-load for 1-2 minutes without abnormal noise or vibration, add a small amount of material evenly.
An incorrect sequence will cause the powder to instantly clog the machine cavity, leading to stalling, overload tripping, and potentially burning out the motor
4)Why does the output drop significantly after switching the wood hammer mill from standard mode to fine powder mode?
A: ① The fine powder mode uses a smaller aperture screen.
②The gap between the moving and stationary blades is adjusted to a minimum.
③The negative pressure conveying load of the blower increases
5) What are the main spare parts of the wood hammer mill? What is the replacement cycle?
A: spare parts: hammer blades (hammer cutters), stationary blades, sieve of different apertures, bearings, oil seals, belts, and sealing rings. Replace according to the wear degree of the wear parts
6)What is the approximate hourly output?
A: The hourly output of a small wood flour mill is approximately 5 tons
7)What is the required moisture content of the raw materials for the machine?
A: Optimal moisture content of raw materials: 10%–22%
8)What causes the wood hammer mill to suddenly overheat, become hot, and emit a burnt smell?
A: ①The screen is completely caked with high-moisture wood flour
②Prolonged overloading during feeding
③Hammer blade jamming or rotor scraping against the machine casing liner
