Product Parameters
|
Model |
HL-27 |
HL-35 |
HL-40 |
HL-50 |
HL-65 |
|
Cutter Disc Diameter (mm) |
1100 |
1300 |
1600 |
1800 |
2200 |
|
Output (T) |
6-10 |
8-15 |
10-20 |
20-25 |
25-30 |
|
Motor Power (KW) |
55-75 |
90-110 |
132-160 |
160-185 |
220-250 |
|
Speed(r/min) |
650 |
650 |
650 |
650 |
650 |
|
Feed Size (mm) |
270*270 |
350*350 |
400*400 |
500*500 |
650*650 |
Product Features and Applications
Customization Service Supported: the size and specifications of the cutting blades can be customized according to customer needs

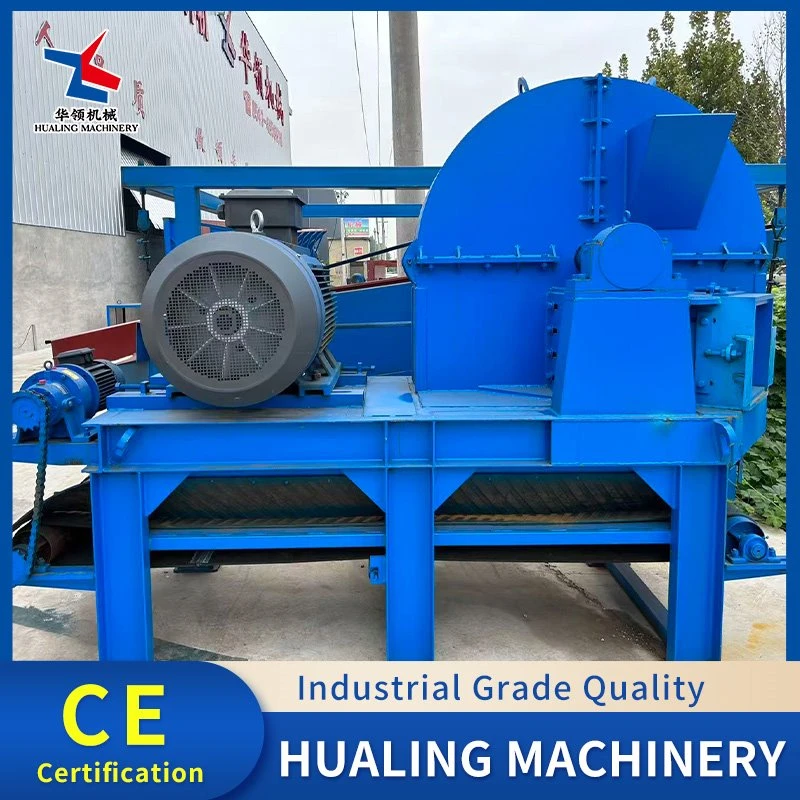

Disc wood chipper has a reasonable structure, simple operation, high production capacity, wide adaptability to raw materials, and produces high-quality wood chips
Disc wood chipper is widely used in the material preparation section of industrial production such as papermaking, silicon refining, and MDF manufacturing
Product Details
01.

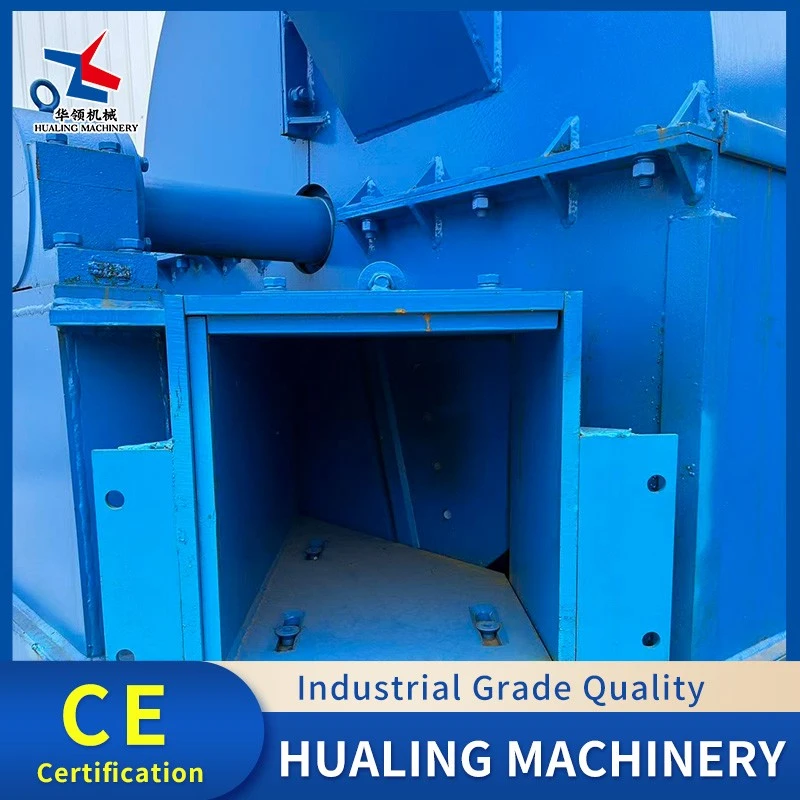

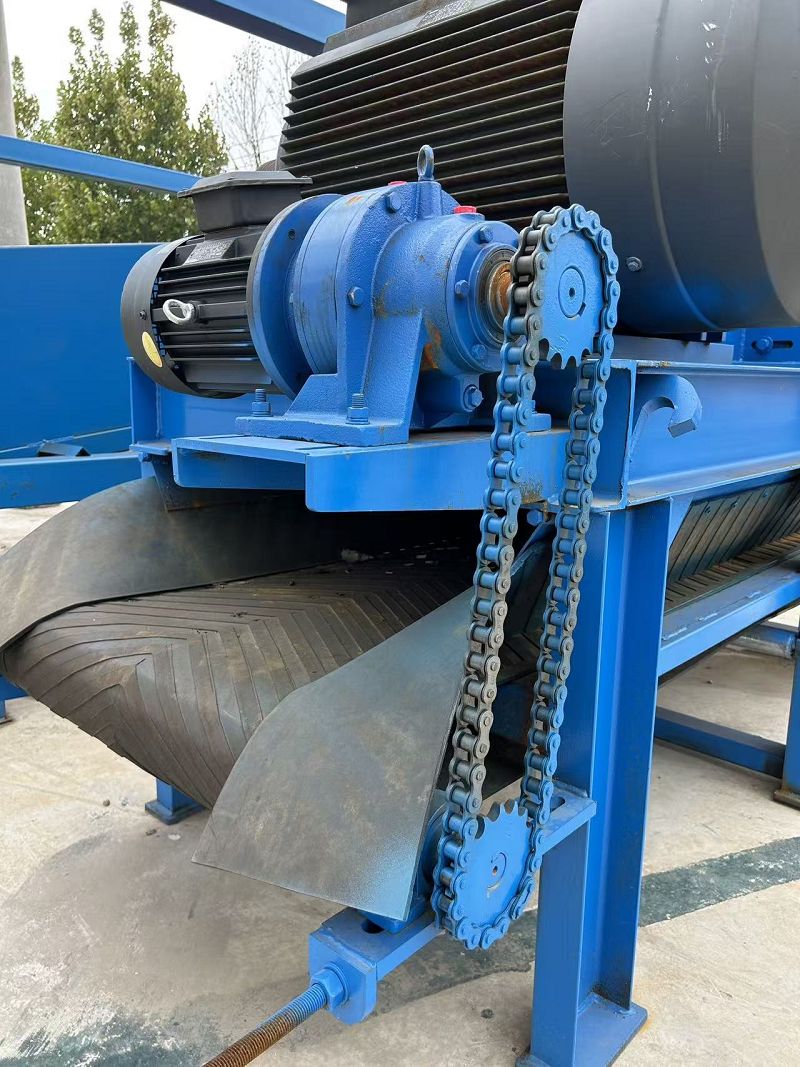

Feeding System: the feed port adopts a slotted feeding method, which results in fast feeding speed and good-looking wood chips
02.

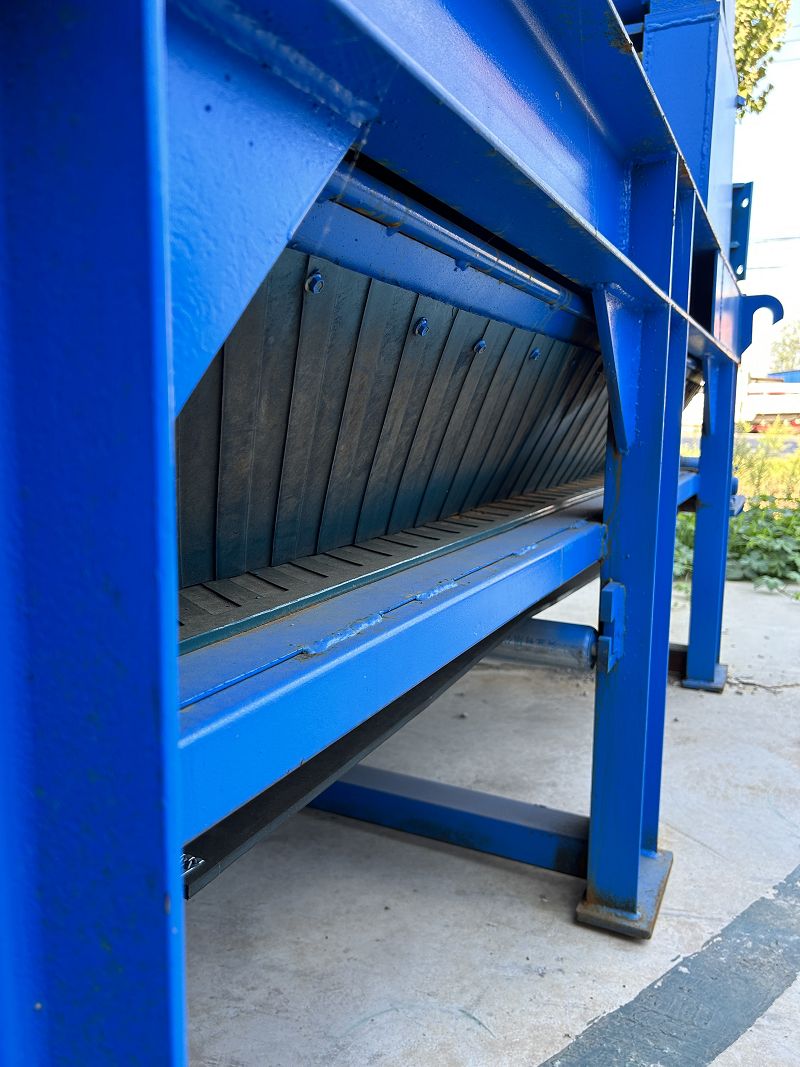

The entire frame is welded from steel plates, and the heavy-duty base provides shock absorption, ensuring stable operation
03.
Disc rotor allows for adjustment of the blade extension to control the wood chip thickness, ensuring that substandard wood chips are recut, thus improving machine efficiency
Product Supporting (certificates / factory video)
After-Sales Service (Pictures or videos)
FAQ
1) What materials is the machine suitable for processing? What cannot it process?
A: Processable materials:
All kinds of logs, small-diameter timber, branches, twigs, bamboo, veneer, timber squares, furniture scraps.
Not processable materials:
①Building formwork with nails, screws, and concrete lumps
② Hard debris such as stones, bricks, metal pipes, and steel bars ③ Non-metallic impurities such as plastics, rubber, fabric, and glass
2)What causes uneven wood chip thickness?
A: ①Inconsistent wear on the multiple cutting tools; some are sharp while others are chipped
②Inconsistent adjustment of the gap between the cutting tools and the bottom blade
③Large differences in the thickness and curvature of the feed material, causing offset in the feeding force
3) Is the wood chip thickness adjustable?
A: Yes, it can be adjusted
4)How to handle excessive scraps and long strips of waste?
A: ①Recalibrate all flying knife height and blade gap to ensure synchronized shearing; sharpen or replace all dull blades.
②Check the pressure of the feed rollers to ensure the material is pressed firmly to prevent slippage and stretching into long strips.
③Replace the discharge screen with a matching aperture; return excessively long or large materials to the machine for recutting
5) Frequent machine jamming, stalling, and tripping?
A: ①Excessive single feed volume, forcibly inserting large pieces of material exceeding the equipment's cutting load
② Severely dulled blades, resulting in a significant increase in cutting resistance
③Excessively high material moisture content, excessive bark adhering to the cavity
6) How often should the blades be sharpened/replaced?
A: Based on blade usage and frequency
7)What are the key points of daily maintenance?
A: ①Blade management: Establish a sharpening log; sharpen dull blades promptly to avoid overloading with dull blades.
②Electrical protection: Ensure the electrical control box is dustproof and moisture-proof; clean dust from the fan cooling system to prevent motor overheating and tripping.
③ Environmental Protection: For long-term shutdown, the inner cavity should be sprayed with anti-rust oil and covered for rain protection
8) What is the hourly output of the disc chipper?
A: Output is affected by the thickness of the die, whether it contains a large number of nails, and whether feeding is continuous
