Product Parameters (HL1400-1100/1600-1000/560)
|

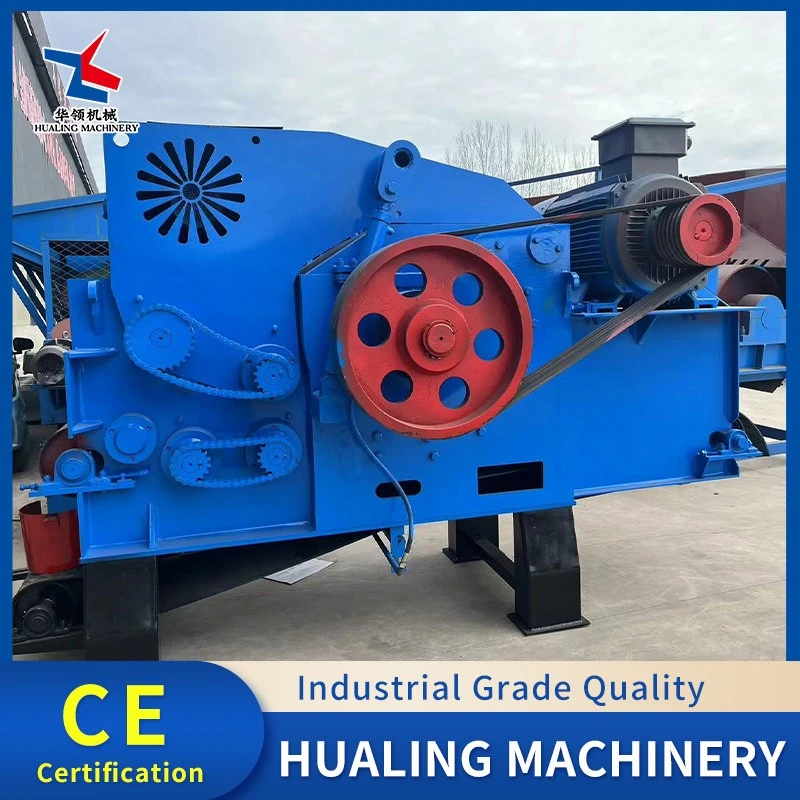

Wood Chipper |
Model |
HL1400-1100 |
|
Feeding system |
Belt feed |
|
|
Cutter Roller Diameter (mm) |
1100 |
|
|
Discharge Width (mm) |
1400 |
|
|

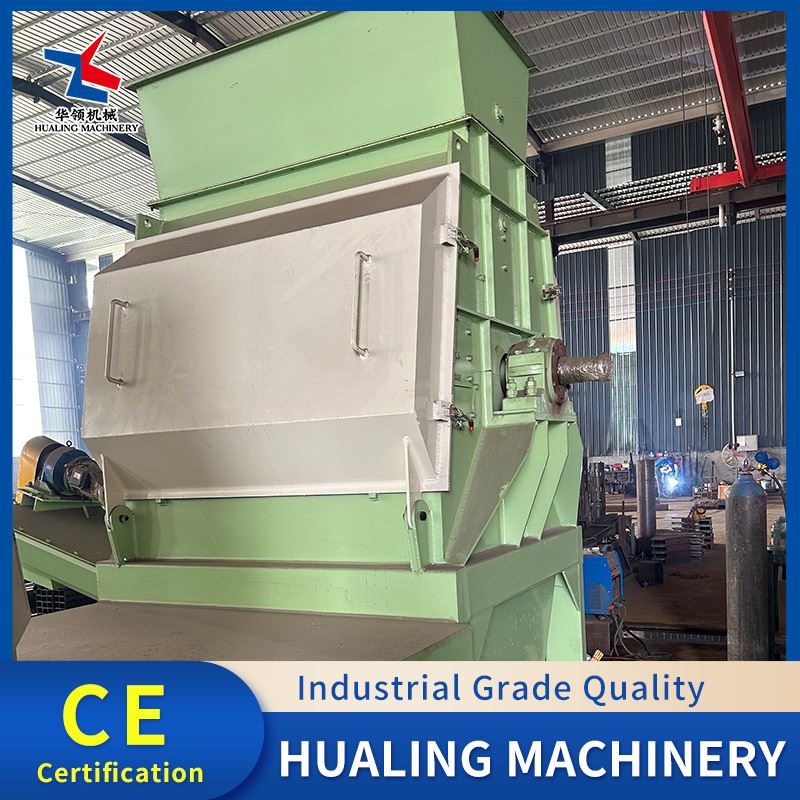

Wood Powder Mill |
Model |
1600-1000 |
|
Rotor Diameter (mm) |
1000 |
|
|
Number of Hammers (pieces) |
44 |
|
|
Feed Inlet Size (mm) |
1600*700 |
|
|

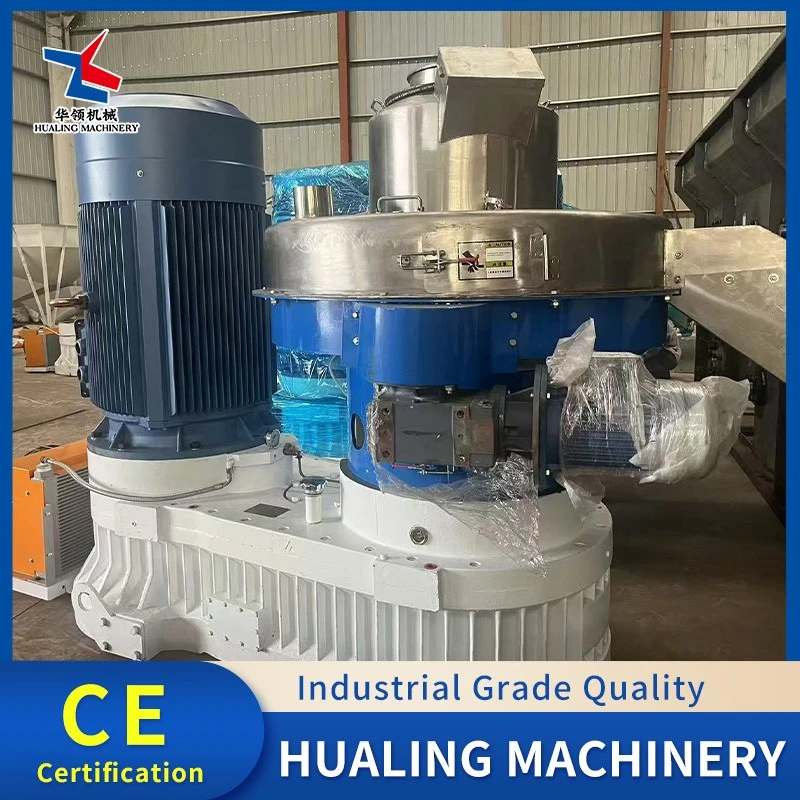

Pellet Mill |
Model |
HL560 |
|
Power(KW) |
132 |
|
|
Voltage |
380v/50hz/3phase |
|
|
Mold Diameter (mm) |
548 |
Product Features and Applications
Automated continuous production eliminates the need for extensive manual labor from raw materials to final packaging, saving labor costs

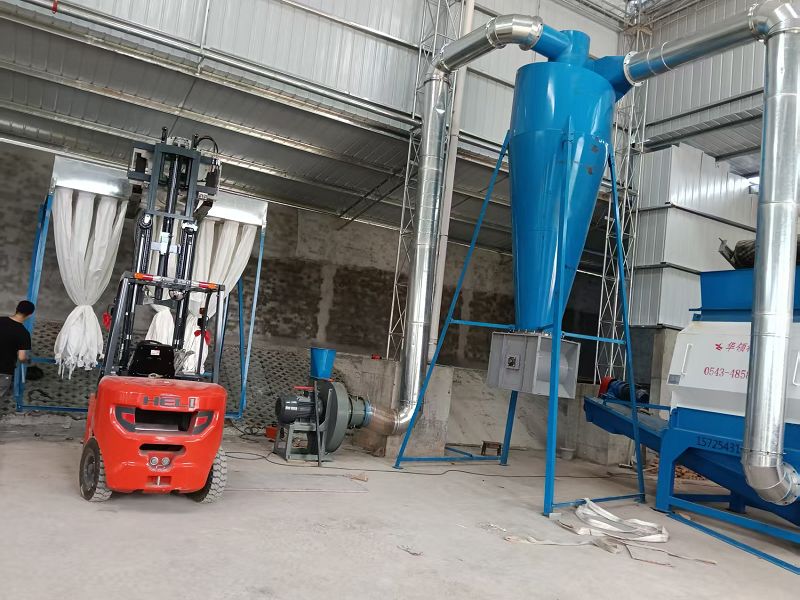

The production line uses a fully sealed dust removal system, ensuring dust emissions meet environmental standards
Biomass pellet machine production line is suitable for the resource recovery of bamboo product factory scraps, and for rural straw recycling and processing bases, etc
Product Details
01.
The wood chipper needs to crush the raw materials into 4-8mm chips
02.
The dryer dries wood chips with a moisture content >20% and sawdust with a moisture content ≤15%, which is beneficial for granulation
03.
The granulation manufactures biomass pellets from wood chips with a moisture content ≤15%
Product Supporting (certificates, factory video)
After-Sales Service (Video or photos)
FAQ
1) We are just entering this industry. Can we purchase a single unit and expand to a complete production line later?
A: For startups, it's perfectly feasible to purchase a single core unit and gradually expand to a complete production line. This is the safest and most lightweight starting solution for beginners
2)What size container is needed for a complete biomass pellet machine production line?
A: For mainstream export production lines, 1-2 tons/hour are standard, and they are packaged and shipped in 2×40HQ containers
3)What equipment is included in a complete production line? Can the equipment be simplified?

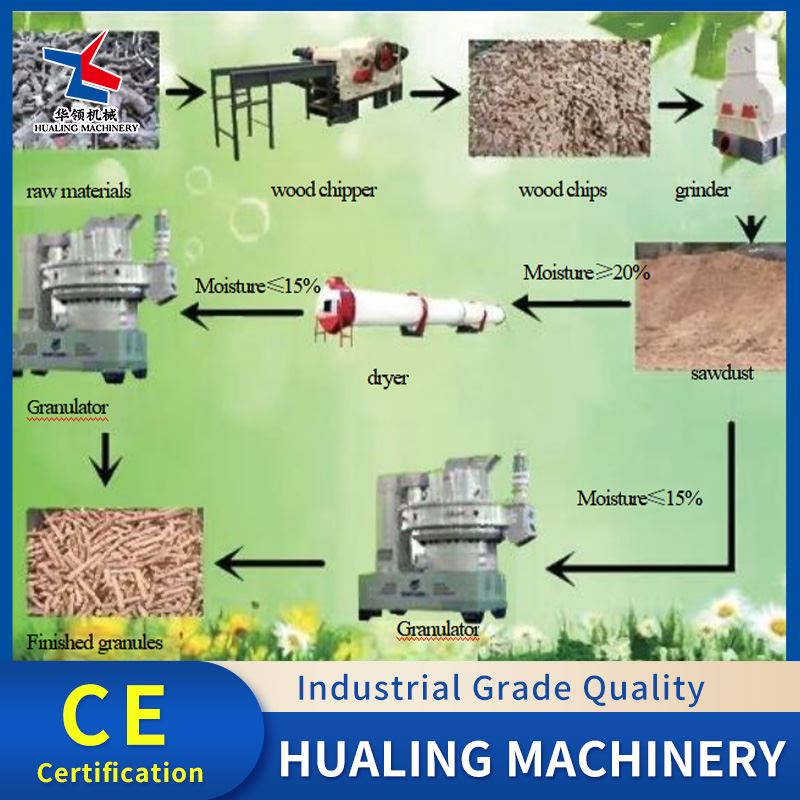

A: Log crusher → Hammer mill → Rotary drum dryer → Buffer silo → Ring die pellet mill → Counterflow cooler → Vibrating grading screen → Finished product silo → Automatic quantitative packaging machine. The rotary drum dryer and hot air furnace can be eliminated directly, along with the automatic quantitative packaging machine
4)Approximately how much floor space is required for the production line?
A: The recommended indoor height is no less than 5 meters to accommodate vertical installation of the dryer and cooler. Space should be reserved for material handling passages, transformer placement, and fire safety barriers
5)Is a complete production line energy-intensive? What is the overall energy consumption per ton of pellets?
A: The entire production line is classified as a medium-energy-consuming processing line. The overall power consumption is determined based on the machine's power output
6)How many people are needed to operate a pellet production line?
A: The number of people needed depends on the level of automation. A fully automated production line requires very few personnel
7)Does the pellet production line meet environmental standards? What environmental protection measures are required?
A: It fully meets environmental standards. Biomass fuel is a category of clean energy encouraged by the state
8)Who are the main customers for the pellets produced by the production line?
A: Industrial boiler heat source customers, livestock farming industry, residential and commercial heating, deep processing supporting manufacturers, building materials, and chemical auxiliary fuels
