Product Parameters
|
Mold |
HL1400-800 |
HL1300-800 |
|
Move Device |
Tire |
Tire |
|
Feeding System |
Belt |
Belt |
|
Production Capacity |
15-20T/H |
20-30T/H |
|
Diesel Engine Model |
6126 type |
460 type |
|
Discharge System |
Folding Belt Conveyor |
Folding Belt Conveyor |
|
Discharge Height (mm) |
4500 |
5000 |
|
Dimensions (mm) |
11000*2490*3500 |
9000*2650*3300 |
Product Features and Applications

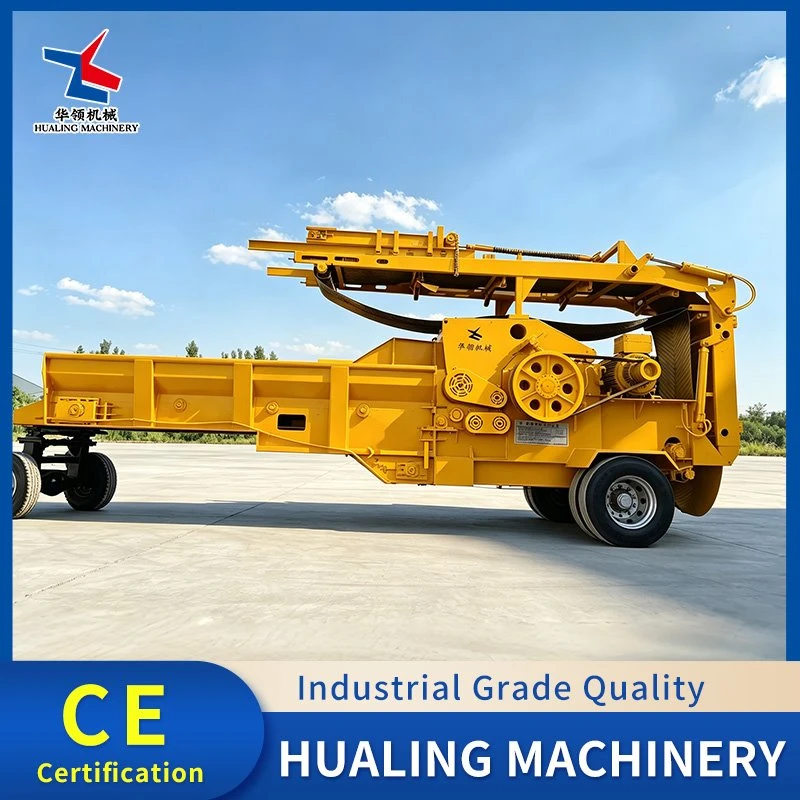

The fully hydraulic mobile wood chipper has strong raw material versatility
It adopts a tire-type walking device, eliminating the need to transport raw materials back to the factory. The wood chipper can chip on-site, improving efficiency
It is mainly used in wood chip trading and processing, particleboard factories, municipal greening, and other scenarios
Product Details
01.

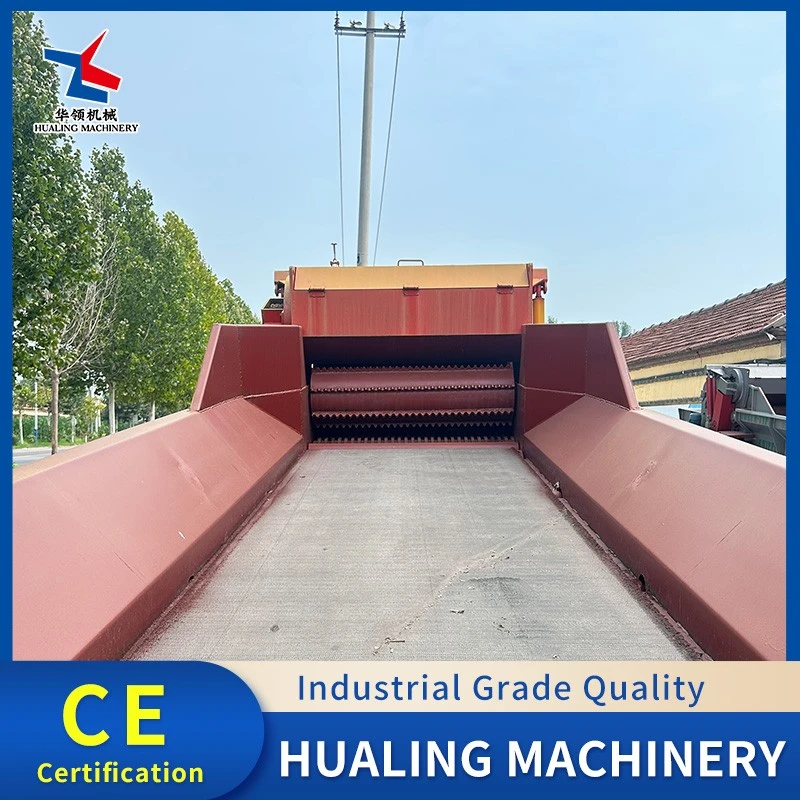

The belt feeding system features forced feeding, preventing material blockage and backflow
02.

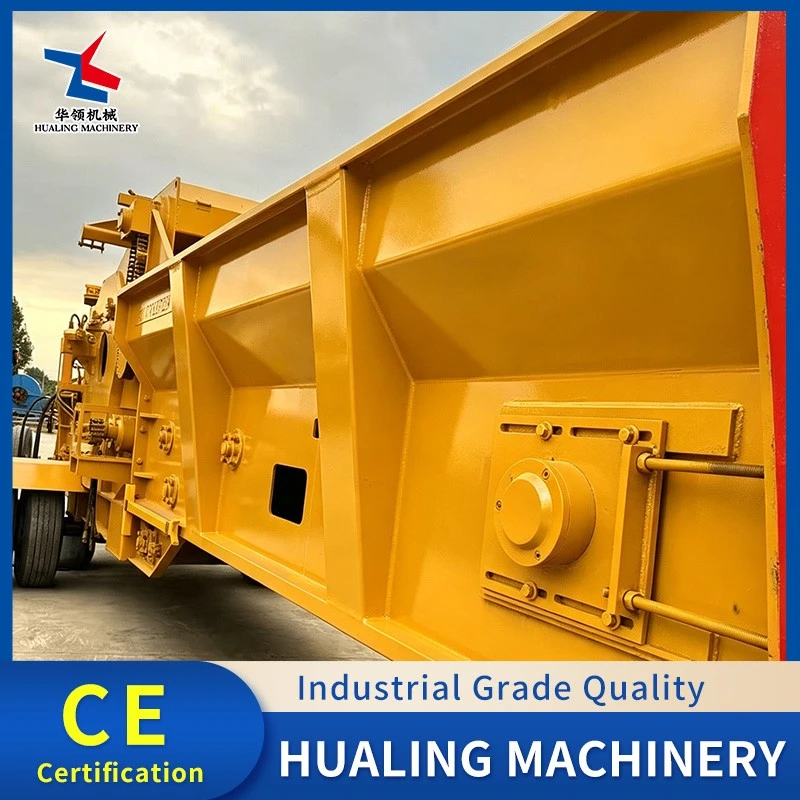

It adopts a tire-type walking chassis with a tow frame, suitable for trucks and tractors towing
03.

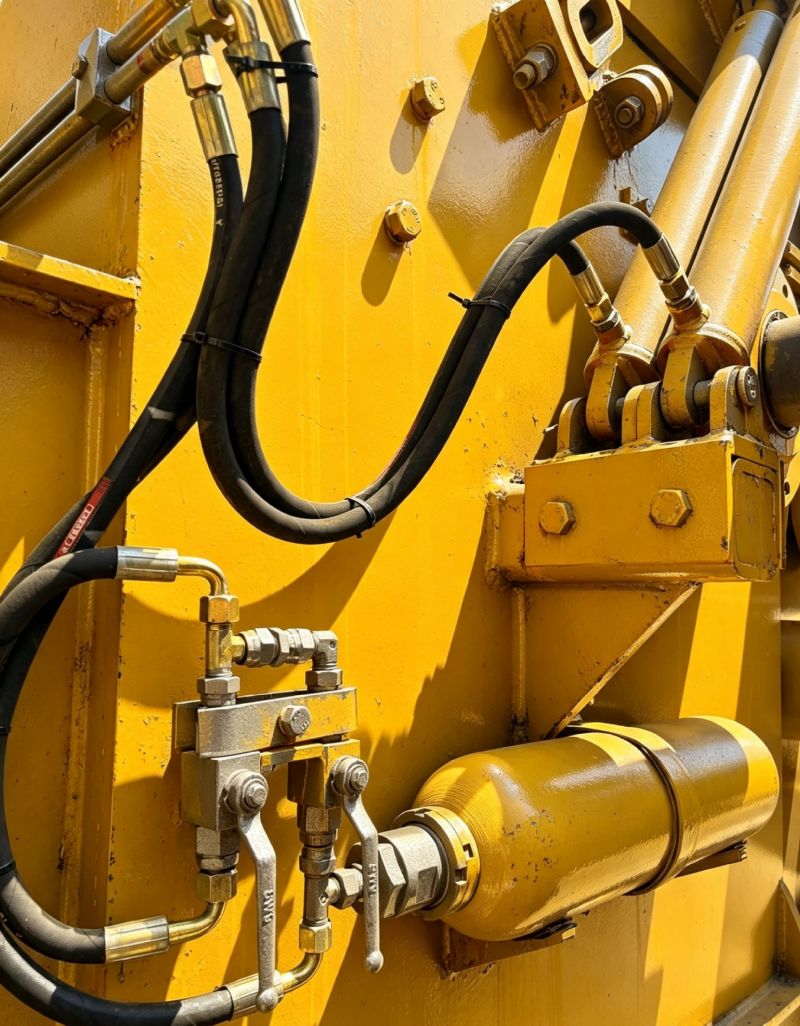

The fully hydraulic mobile wood chipper features a lower hydraulic pressure roller driven by an independent hydraulic motor, with an automatic floating buffer hydraulic cylinder
Product Supporting (Certificates/Pictures)
After-Sales Service (Video or Pictures)
FAQ
1) What is the customs code?
A: 8465960000
2)Can the tires be used directly on roads?
A: No, they cannot be driven directly on public roads.
3)What is the difference between a fully hydraulic mobile wood chipper and a regular wood chipper?
A: ①Feeding system:
The fully hydraulic machine uses a hydraulic motor to drive the feeding, with overload protection and automatic reverse function in case of jamming.
Regular models mostly use a motor + reducer + belt for mechanical feeding, without automatic reverse protection, and are prone to jamming and stopping.
②Power and mobility: Fully hydraulic machines are mostly equipped with diesel engines, allowing direct operation in areas without electricity; regular motor models require an industrial power supply.
③Operation: Fully hydraulic machines can be equipped with wireless remote control, and the feeding speed is adjustable; regular models are mostly operated manually at a fixed speed.
4)Will the hydraulic system overheat and malfunction during high-temperature summer operation?
A: Continuous full-load operation for extended periods can lead to excessively high oil temperatures and slower operation if heat dissipation is poor. In severe cases, it may trigger a protective shutdown. This is not a machine malfunction but rather a high-temperature protection mechanism in the hydraulic system.
5)How is the entire machine shipped? Is the transport volume large?
A: Small and medium-sized tire-mounted wood chippers are shipped as a complete unit, without disassembling large parts. Wear parts and tools are packed separately. Larger models will be partially disassembled.
6)Is the belt feeder prone to wear? How is it replaced and maintained later?
A: The belt is a wear part. Hard objects such as nails and stones will quickly scratch and tear the belt.
Maintenance:
①Before starting the machine each shift, check the belt for cracks, delamination, and misalignment; promptly clean sawdust and debris from the belt gaps to prevent hard objects from getting stuck.
②Adjust the pressure roller pressure to an appropriate level; do not press too tightly, as this will accelerate belt wear.
③Prevent machine oil and diesel fuel from coming into contact with the belt rubber surface, as this will accelerate rubber aging.
