Product Parameters
|
Model |
HL820 |
|
Main Motor(KW) |
45 |
|
Reducer |
ZQ650 |
|
Roller Length(mm) |
8400 |
|
Roller Diameter(mm) |
820 |
|
Main Body Lower Discharge Belt(mm) |
1200 |
|
Discharge Rack(mm) |
Long: 6000 width: 800 |
|
Comb Plate Thickness(mm) |
16 |
|
Main Cabinet Thickness(mm) |
8 |
|
Dimensions(mm) |
10500*2300*2700 |
Product Features and Applications
Open hopper, feeding at one end and discharging at the other, high working efficiency
Single-roller wood skin machine has low transmission loss and low power consumption
Applicable to paper mills, artificial board factories, biomass power plants, municipal landscaping, wood recycling and processing plants, etc
Product Details
01.

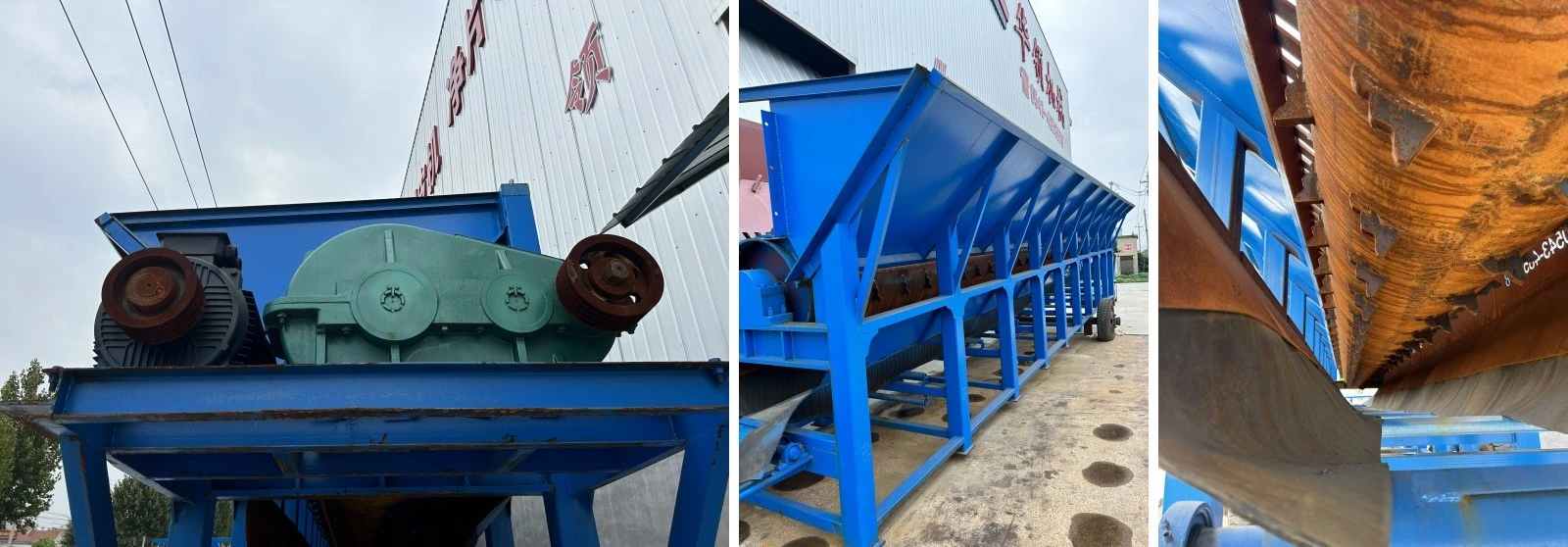

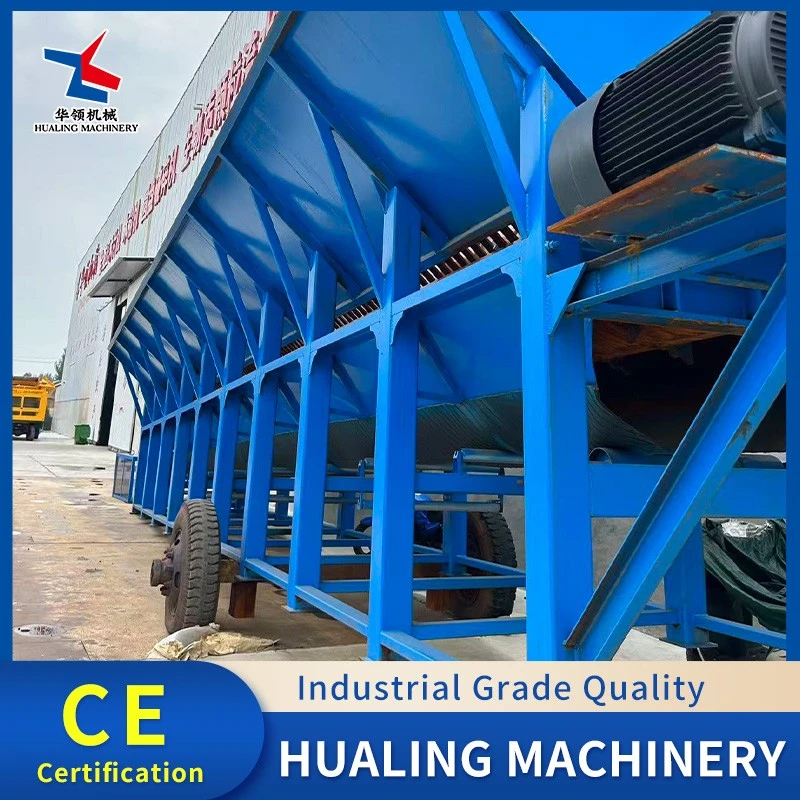

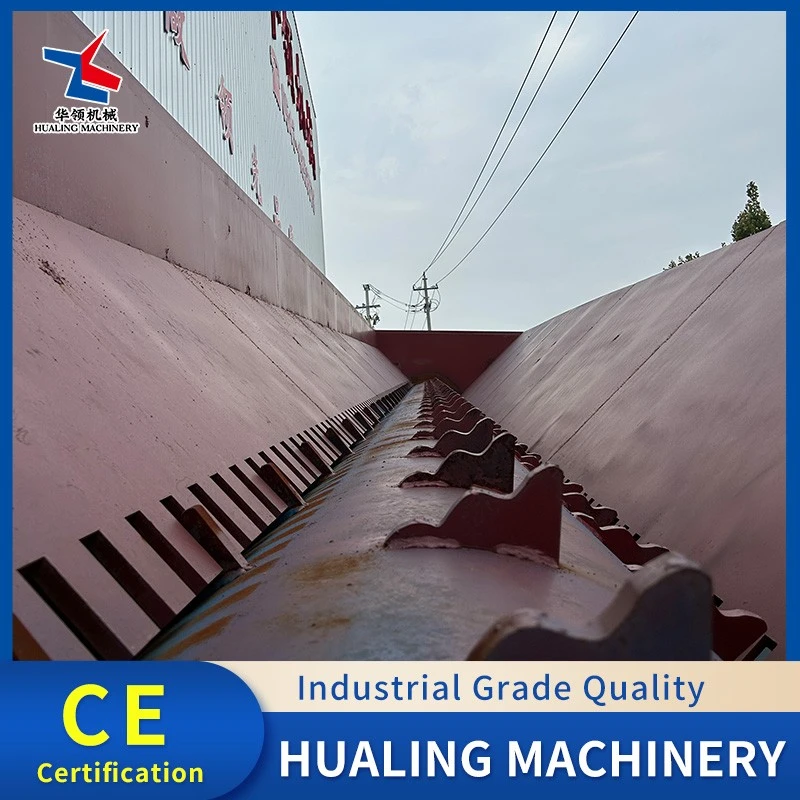

The main frame of the single-roller wood skin machine adopts a long, open U-shaped trough, accommodating multiple logs for simultaneous operation; the steel plate welding is sturdy and wear-resistant
02.

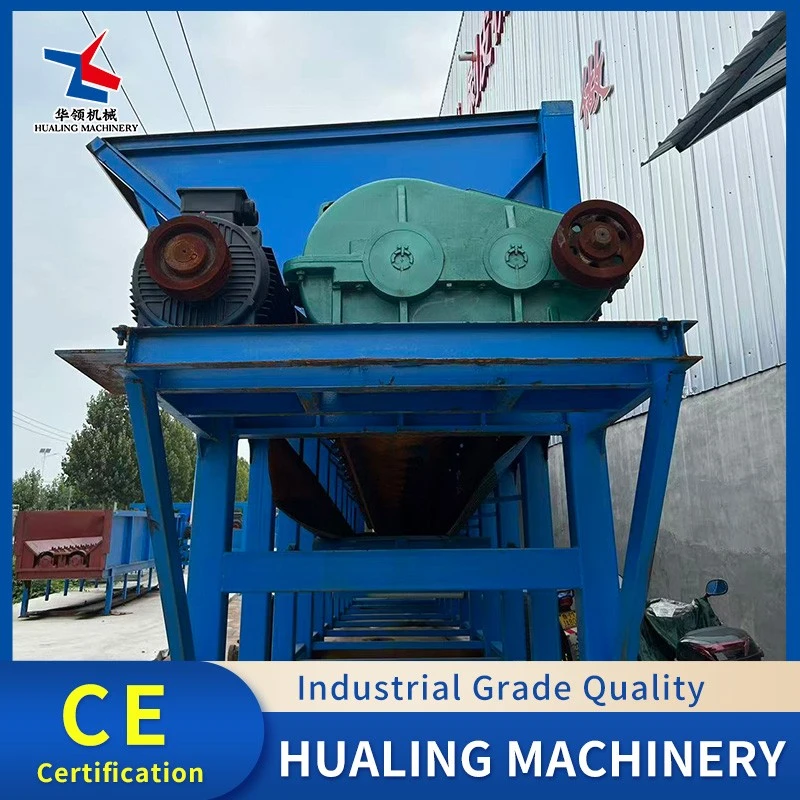

The power transmission system adopts a combination of motor and hardened gear reducer, with optional frequency conversion speed regulation
03.

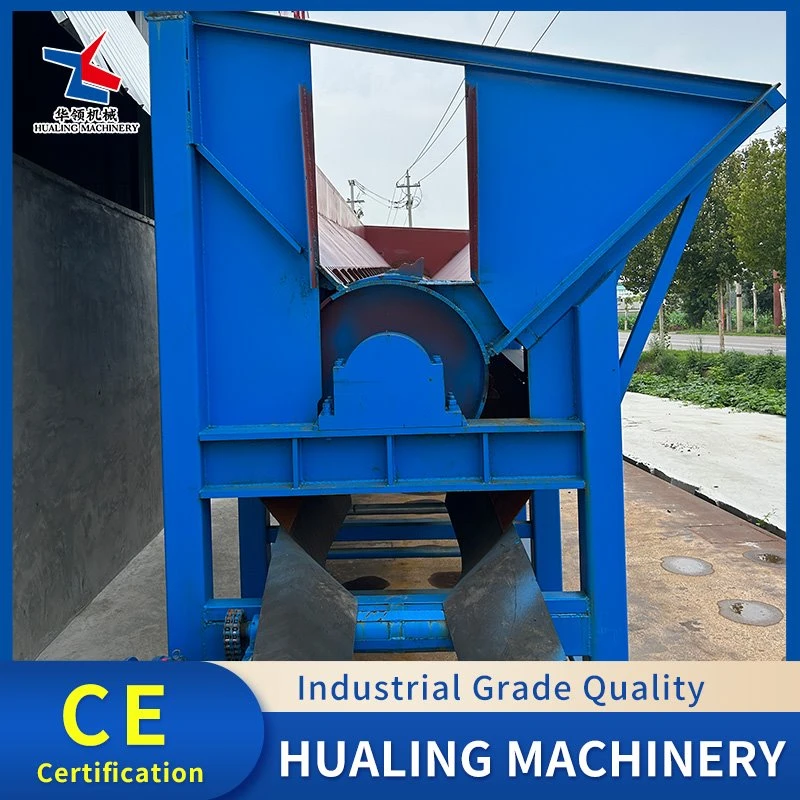

Feeding and discharging guides, feeding at one end and continuously discharging at the other, suitable for assembly line conveyors
Product Supporting (certificates/factory video)
After-sales Service (Pictures or videos)
FAQ
1) What types of wood can the single roller peel? Can it process mixed hardwoods, wet wood, and frozen wood?
A: It can process coniferous / broadleaf logs such as pine, poplar, eucalyptus, fir, and birch. It can also process mixed hardwoods, wet wood, and frozen wood
2)What thickness and length of logs can the machine process?
A: The maximum diameter range is 320–450mm, with a standard maximum length of 6 meters
3)What if the peeling effect is poor on bent logs, logs with knots, or logs with large burls?
A: Adjust equipment parameters: For hydraulic models, increase the peeling roller pressure and decrease the feed conveyor speed. Optimize the feeding method: Do not feed single bent or large logs alone; mix them with 2–3 straight logs
4)What is the approximate hourly output of the equipment? Can it meet the needs of a large-scale production line?
A: The output varies depending on the motor power, approximately 8-12T/H. It can be fully integrated with large-scale fully automatic chipping, pulping, and biomass pelleting production lines
5)Can the machine body be lengthened, and can a feeding machine and bark conveyor be added?
A: All can be customized and added
6)What are the main spare parts, and how often should they be replaced? Are they expensive?
A: The main spare parts include: wear-resistant teeth (blades) of the peeling roller, oil seals, drive chain, reducer gears, pulleys, etc. Replacement is based on the wear degree of these parts, resulting in relatively low overall maintenance costs
7)How to solve the problems of material jamming during feeding and logs slipping and not tumbling?
A: Slipping and not tumbling: Immediately weld and grind worn roller teeth to ensure gripping friction; drain as much surface water as possible from wet logs to reduce slippage.
Making a jam: If jammed, immediately disconnect the power, stop the machine, disassemble and clean. Do not forcibly start the motor to prevent burning it out or breaking the drive shaft
8)What is the production cycle of the equipment, and how long does it take to ship?
A: Shipment within 3-7 business days after full payment
