Product Parameters
|
Model |
HL-1300 |
HL-1500 |
HL-1800 |
|
Motor |
11KW*3 |
15KW*2 |
18.5KW*2 |
|
Roller Diameter(mm) |
325 |
377 |
530 |
|
Roller Wall Thickness(mm) |
10 |
10 |
14 |
|
Roller Speed (RPM) |
78 |
78 |
78 |
|
Wood Diameter(mm) |
30-500 |
30-500 |
30-500 |
|
Peeling Rate (%) |
＞90 |
＞90 |
＞90 |
|
Moisture Content (%) |
40-50(Fresh Wet Wood) |
40-50(Fresh Wet Wood) |
40-50(Fresh Wet Wood) |
|
Output per Hour (T/H) |
8-12 |
10-15 |
15-30 |
|
Dimensions(mm) |
6000*2100*1600 |
6000*2500*1700 |
10000*2200*2800 |
Product Features and Applications
We offer double-roller wood skin machines with various functions, covering a wide range of production capacities and adaptable to large-scale production lines in different factories
Peeling purity can reach 95%-98%, reducing raw material loss costs
Applicable to pulp and paper mills, plywood plants, pellet fuel plants, forest farms, etc

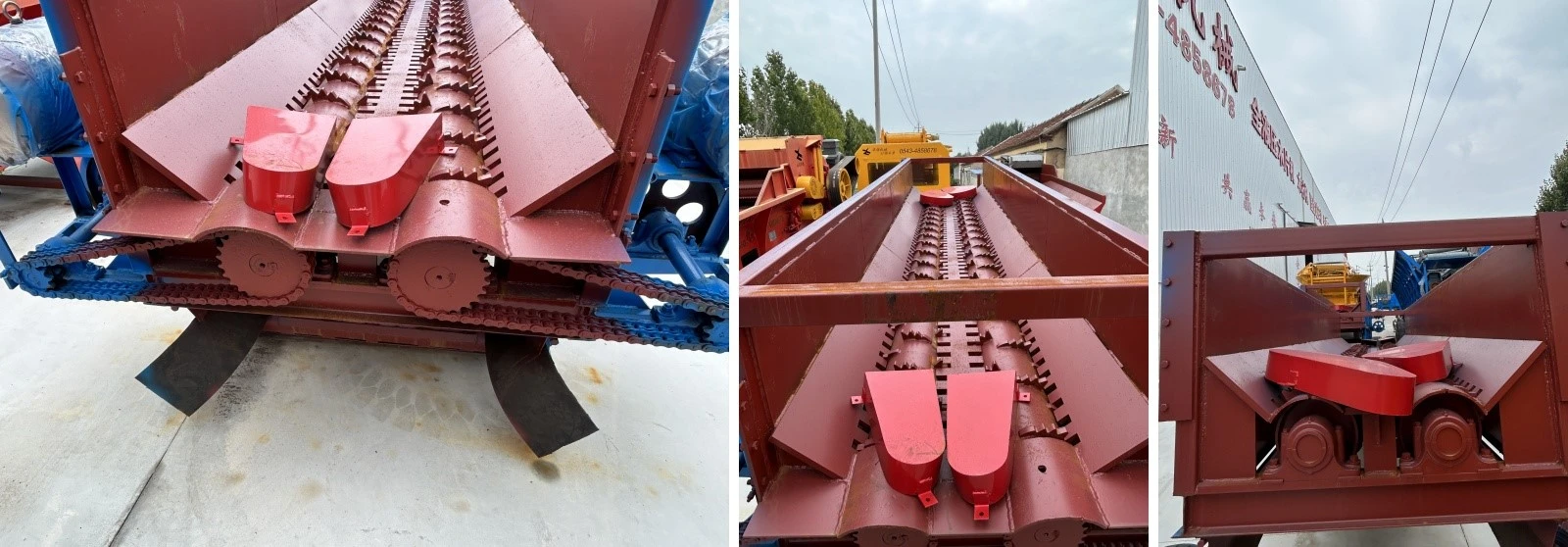

Product Details
01.
The peeling machine rollers are made of seamless steel pipes, resulting in a longer service life
02.

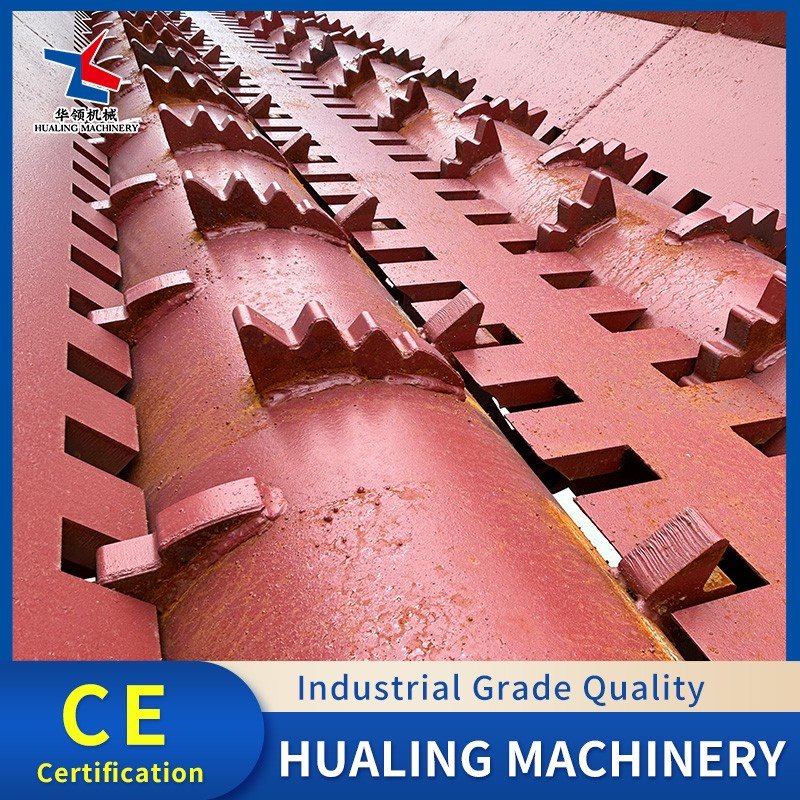

The peeling teeth are laser-cut, allowing for adjustable tooth angles based on raw material ratios. High-speed imported bearings ensure a high peeling rate
03.
The peeling machine features dual independent discharge ports: the front discharges clean wood chips, while the bottom separately discharges bark waste, eliminating the need for manual sorting
Product Supporting (certificates / factory video)
After-Sales Service (Pictures or Videos)
FAQ
1) For the same machine length, how much higher is the output of a double-roller peeler compared to a single-roller peeler?
A: For the same machine length, a double-roller peeling machine increases overall output by 25%~40% compared to a single-roller peeling machine
2)What is the peeling rate? Will it damage the wood core?
A: Under standard operating conditions, the peeling cleanliness can reach 95%~98%. Proper commissioning and use will not damage the wood core
3)What is the function of the hydraulic system in a double-roller wood skin machine?
A: ①Automatically adjusts the clamping pressure of the two sets of peeling rollers.
②Automatic overload pressure relief protection.
③Controls the extension and retraction of the feeding and pushing mechanism and the pressing baffle
4)What are the main spare parts? What is the replacement cycle? Is disassembly and assembly complicated?
A: List of wear parts: hydraulic oil seals, sealing rings, heavy-duty bearings, drive chains, hydraulic filters. The replacement cycle depends on the wear condition of the wear parts; a skilled worker can complete the task alone
5)What qualifications does the equipment have? Can it be exported overseas?
A: The machine comes with a factory certificate of conformity, a third-party mechanical safety inspection report, CE EU certification, and SGS testing, meeting the customs clearance requirements of most countries worldwide
6)Is the equipment tested before leaving the factory? Can customers bring materials to the factory to test the peeling effect?
A: All equipment undergoes a 100% no-load + load continuous test run for 2-4 hours before leaving the factory. Customers can bring their own materials for on-site testing
7)Which parts require daily maintenance?
A: All rotating bearings and sprockets should be lubricated with lithium-based grease. The hydraulic station should be monitored for oil temperature. The filter element surface should be blown clean to remove dust
8)How long is the equipment warranty? How is the after-sales response speed for spare parts?
A: Excluding wear parts, the warranty against non-human-caused damage is one year, with 24-hour online service
