Product Parameters
|
Model |
HL1000-800 |
HL1300-800 |
HL1400-800 |
|
Feeding Method |
Chain Plate Feeding |
Chain Plate Feeding |
Chain Plate Feeding |
|
Chain Plate Size (mm) |
6000*1000 |
6000*1200 |
6000*1400 |
|
Hydraulic Oil Tank Capacity (L) |
300 |
300 |
300 |
|

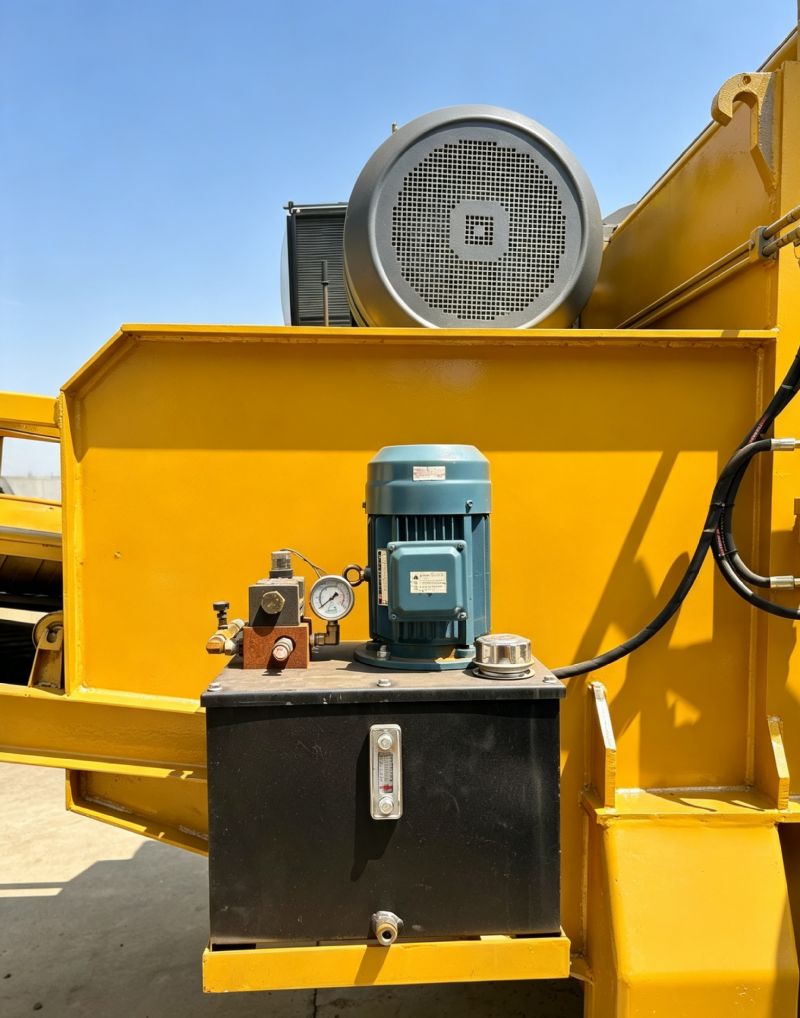

24V Power Unit |
Remote Control |
Remote Control |
Remote Control |
|
Radiator |
have |
have |
have |
|
Solenoid Valve Assembly |
have |
have |
have |
|
Dimensions (mm) |
18000*2600*3200 |
18000*2800*3200 |
20000*3000*3700 |
Product Features and Applications
Rigid conveying system with chain plate feeding, adaptable to all types of materials, stable conveying of slippage, dry and wet mixed wood, etc
Adopts intelligent anti-blocking protection system, with real-time monitoring of host load by electrical control, significantly reducing downtime for cleaning

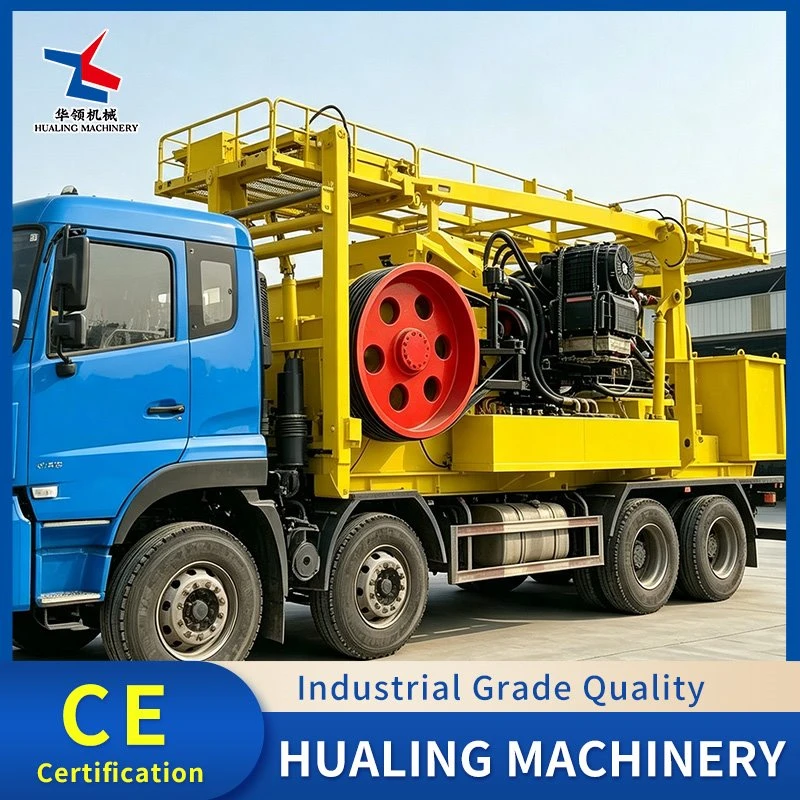

Vehicle-mounted chain plate wood chipper can process building timber formwork, wooden pallets with nails, felled branches, bamboo and wood waste with soil, waste furniture, etc
Product Details
01.

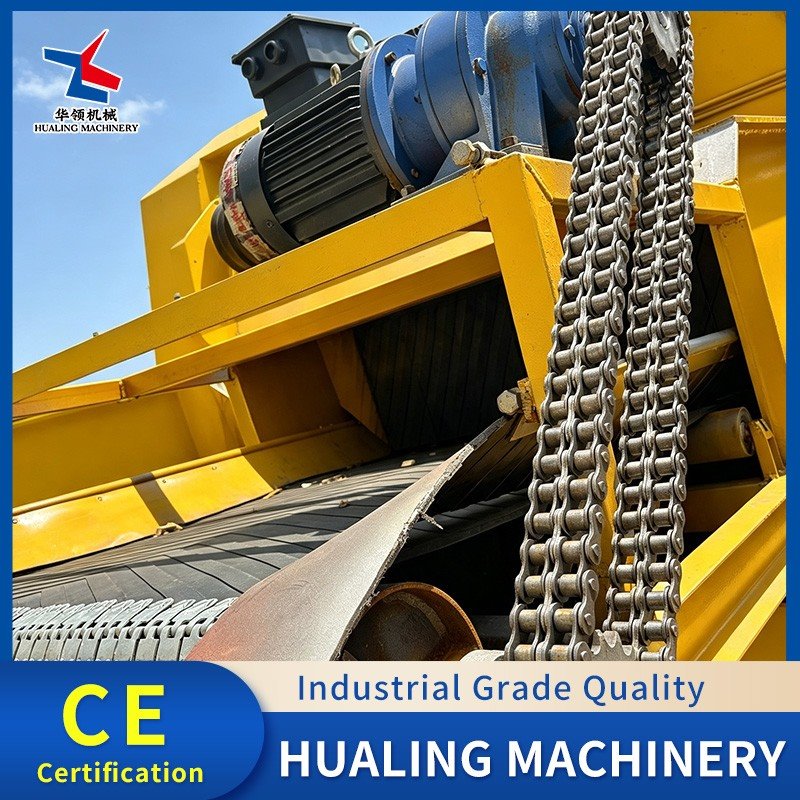

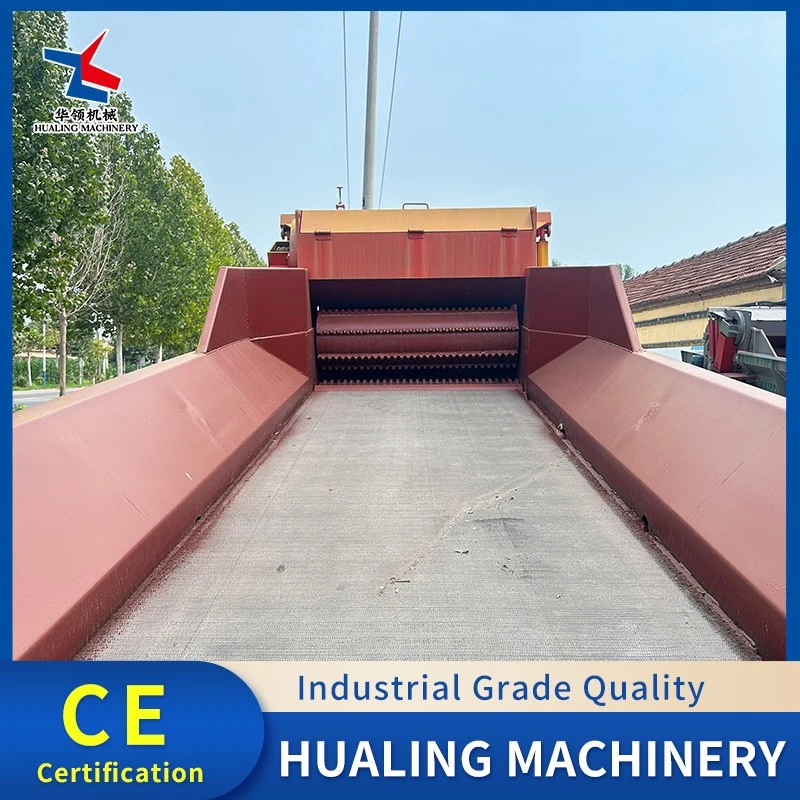

Vehicle-mounted chain plate wood chipper uses a chain plate feeding assembly with a widened and lengthened steel chain plate platform, supporting loader loading of entire piles
02.

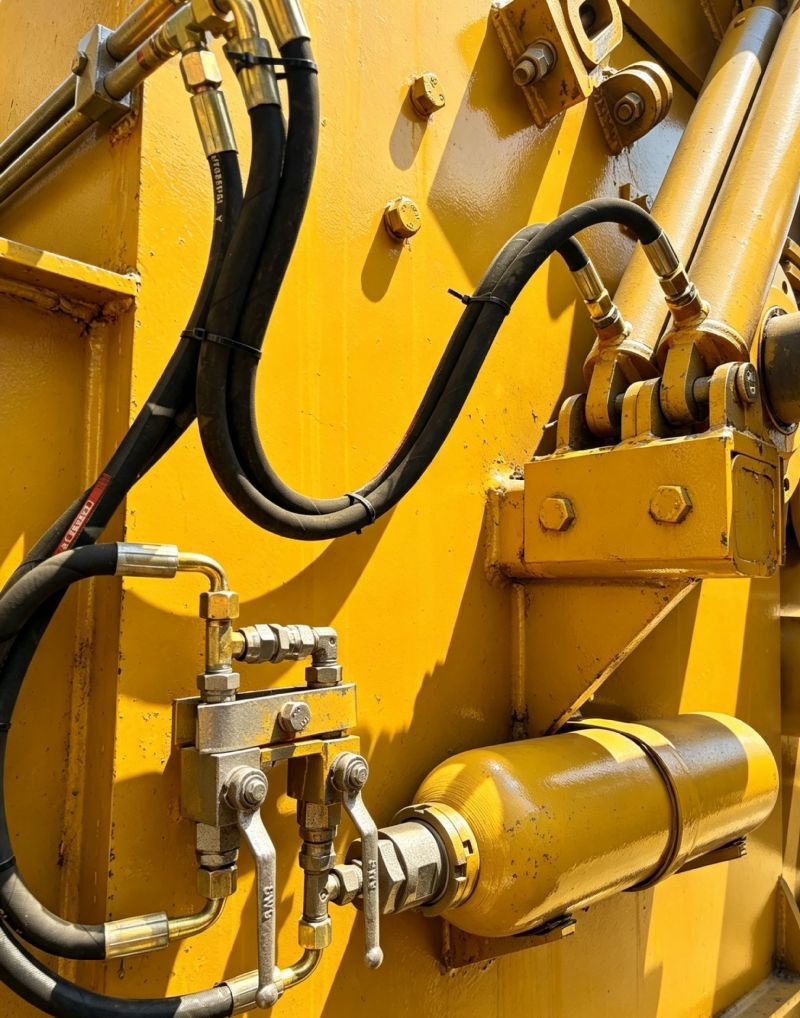

Employs a fully hydraulic folding high-throw conveyor belt (automatically retracts during relocation), facilitating site changes and convenient operation
03.

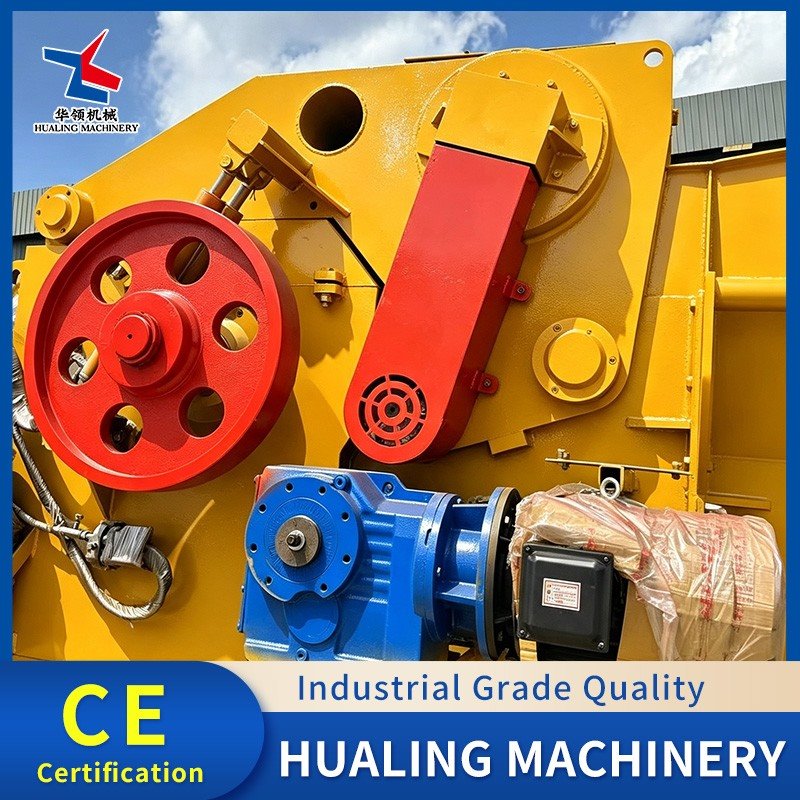

Vehicle-mounted chain-plate wood chipper uses a high-power diesel generator, providing high power and high hourly output
Product Supporting (Certificates/Pictures)
After-Sales Service (Videos or Photos)
FAQ
1) Can the vehicle-mounted chain-plate wood chipper be converted to a vehicle-mounted belt-feed system later?
A: Retrofitting is not recommended. The frame, pressure roller mechanism, reducer, and load-bearing structure of the chain-plate feeding model are designed for heavy-duty chain-plate operation
2)Can the chain plates of the vehicle-mounted chain-plate wood chipper process wood containing nails, stones, or dirt? Will this damage the equipment?
A: Chain plates can withstand wood containing nails, stones, and dirt. Compared to belt-feed models, they will not be cut by nails
3)What should I do if the chain frequently gets stuck with sawdust or debris?
①Stop the machine and disconnect the power at the end of each shift, and clean the gaps in the chain plates, the chain, and the sprockets.
②Regularly check and adjust the chain tension
③Regularly lubricate the chain pins and sprockets with grease
4)What is the hourly fuel consumption?
A: It depends on the output, approximately 1L/T.
5)What is the hourly output?
A: Production output is affected by raw materials, moisture content, and impurities

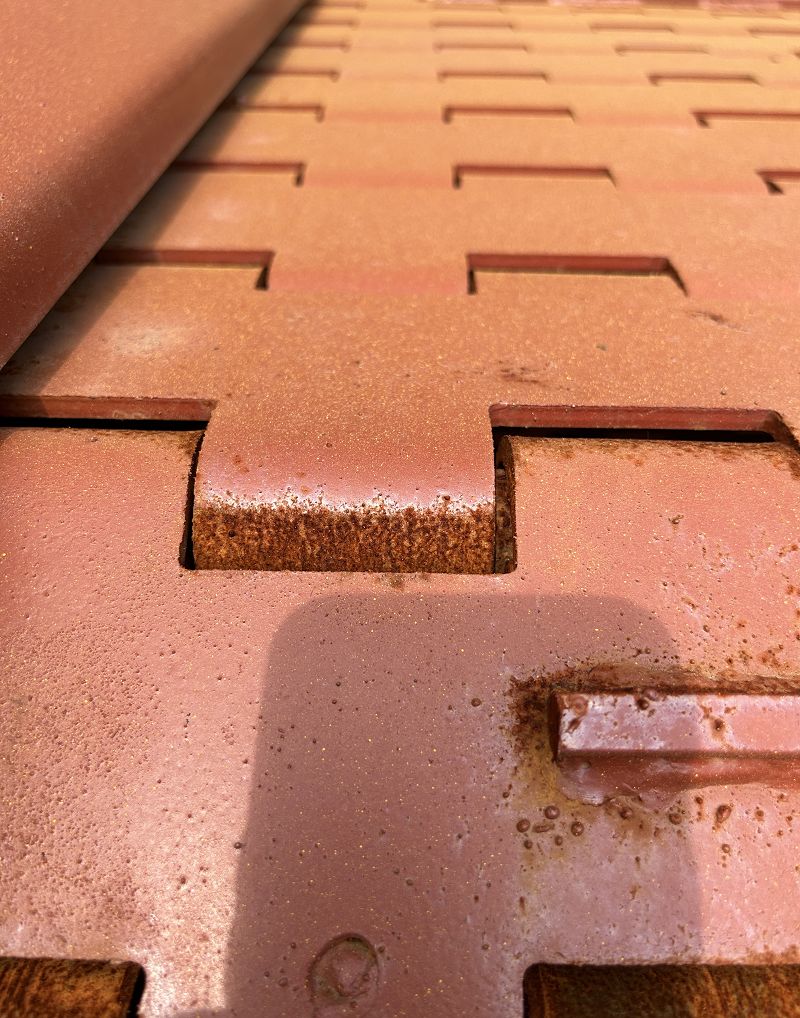

6)How do I repair deformed chain plates or stretched chains?
A: Deformed chain plates:
Slight warping: Remove the chain plate, straighten and correct it. If there are no cracks, it can continue to be used.
Twisting, denting, or cracking: Replace the individual plate directly; the entire chain plate set does not need to be replaced.
Chain elongation:
Slight elongation: Adjust the tensioning mechanism to compensate for the chain elongation.
Severe wear, excessive elongation, or increased pitch: Adjusting the tension alone will not solve the problem; the entire chain set needs to be replaced.
