Product Parameters
|
Model |
HL1400-800 |
HL1300-800 |
|
Walking Device |
Tracked |
Tracked |
|
Feeding Method |
Chain Plate Feeding |
Chain Plate Feeding |
|
Feed Groove Width (mm) |
1400 |
1300 |
|
Feed Groove Length (mm) |
5000 |
3000 |
|
Feeding Hydraulic Motor |
Reducer Motor |
Five-Star Hydraulic Motor |
|
Feeding Speed (m/min) |
0-33 |
0-33 |
|
Dimensions (mm) |
11000*2490*3500 |
9000*2650*3300 |
Product Features and Applications

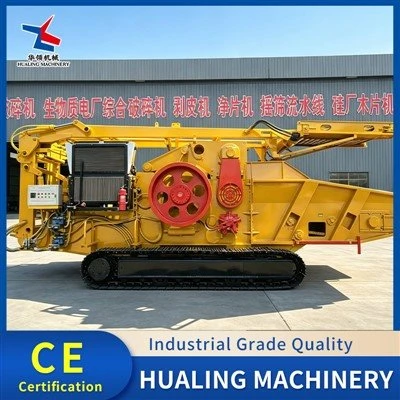

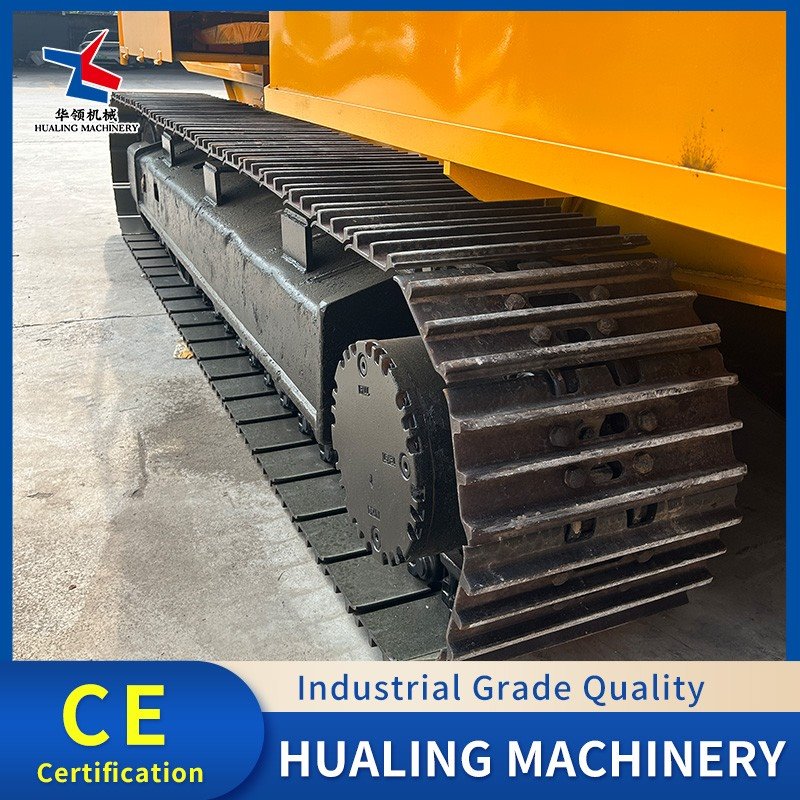

Utilizes tracks for mobility, providing excellent off-road performance and stability, adapting to various complex terrains
Employs a fully hydraulic drive system, allowing precise control of all aspects of the crusher's operation
Suitable for biomass power plants in mountainous areas, logging bases, and wood chip traders in hilly regions
Product Details
01.
Hydraulic system drives the breaker hammer, utilizing the piston's reciprocating motion within the cylinder to generate impact force, striking the chisel rod and thus crushing branches or other materials
02.

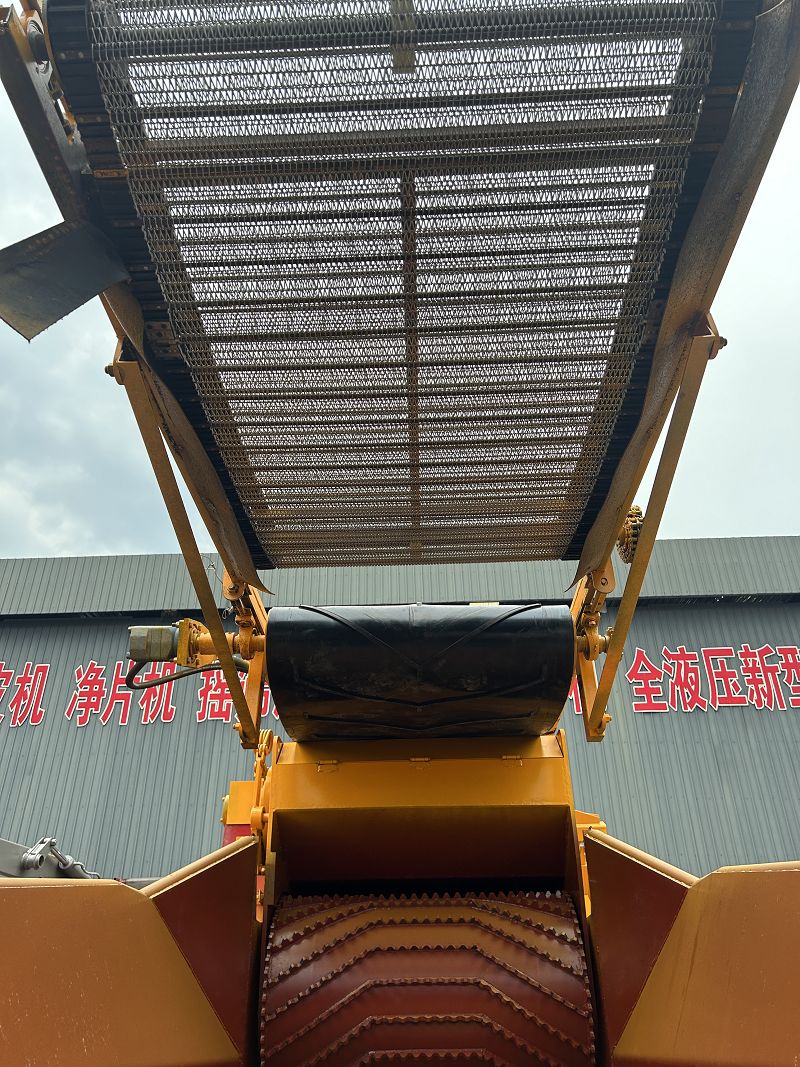

Discharge system uses a folding belt conveyor for continuous large-scale material transport, eliminating the need for manual assistance
03.

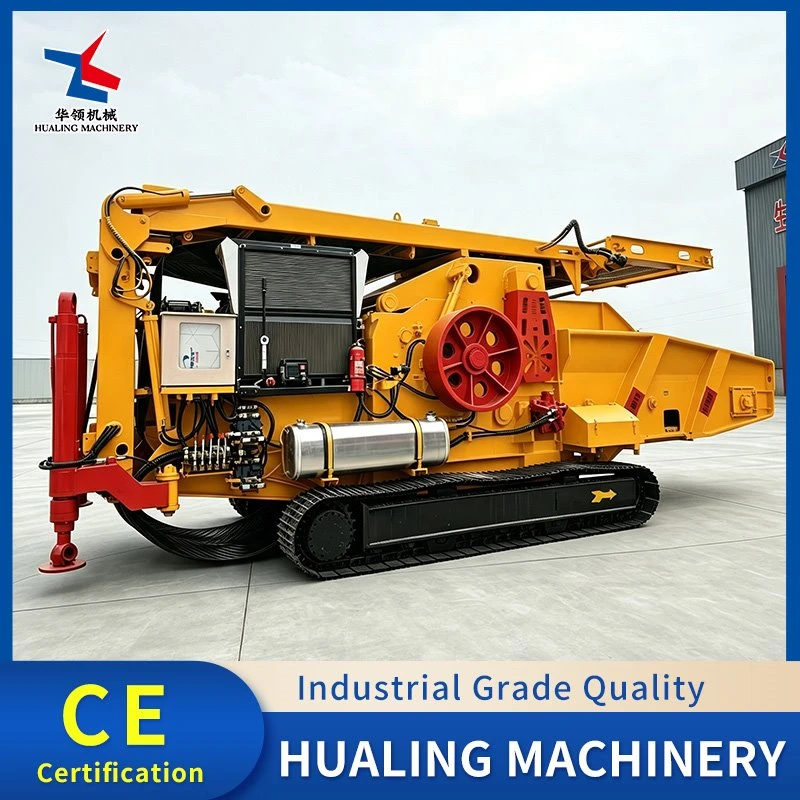

Fully hydraulic chain-track wood chipper requires no concrete foundation; leveling with hydraulic outriggers is sufficient for operation. Single-person remote control operation completes the entire process
Product Supporting (Certificates/Pictures)
After-Sales Service (Videos or Photos)
FAQ

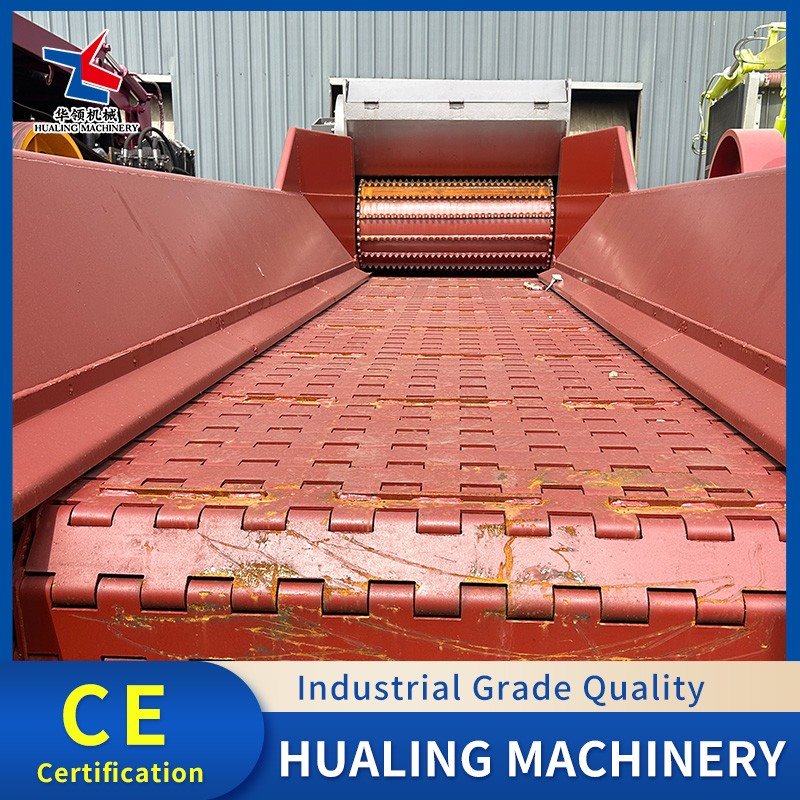

Q: What is the service life of the chain plates in a fully hydraulic chain-track wood chipper?
A: The service life is long when processing clean branches and logs under good working conditions. The service life is shorter when processing construction templates, materials containing stones, nails, or other miscellaneous materials
Q: What materials are used for the machine body? What materials are used for the chain plate feed?
A: The main machine frame is welded from Q345 high-strength steel plate. The feeding chain plates are made of NM400 wear-resistant alloy steel
Q: What is the control range of the wireless remote control?
A: Unobstructed straight-line distance: 100-150 meters
Q: What is the diameter of the wood chips that a fully hydraulic chain-track wood chipper can process?
A: ≤500mm
Q: What types of diesel fuel can be used?
A: Weichai, P13, etc.
Q: To adjust the size of the wood chips, what is the adjustable range of the screen size?
A: Standard sieve aperture is 10-80mm
