Product Parameters
|
Model |
HL1400-800 |
HL1300-800 |
|
Moving Device |
Tire-mounted |
Tire-mounted |
|
Feeding Method |
Chain Plate Feeding |
Chain Plate Feeding |
|
Main Steel Plate Thickness (mm) |
25 |
25 |
|
Cutter Roller Diameter (mm) |
800 |
800 |
|
Cutter Roller Spindle |
40cr |
40cr |
|
Cutter Roller Speed (rpm) |
280 |
630 |
|
Dimensions (mm) |
11000*2490*3500 |
9000*2650*3300 |
Product Features and Applications

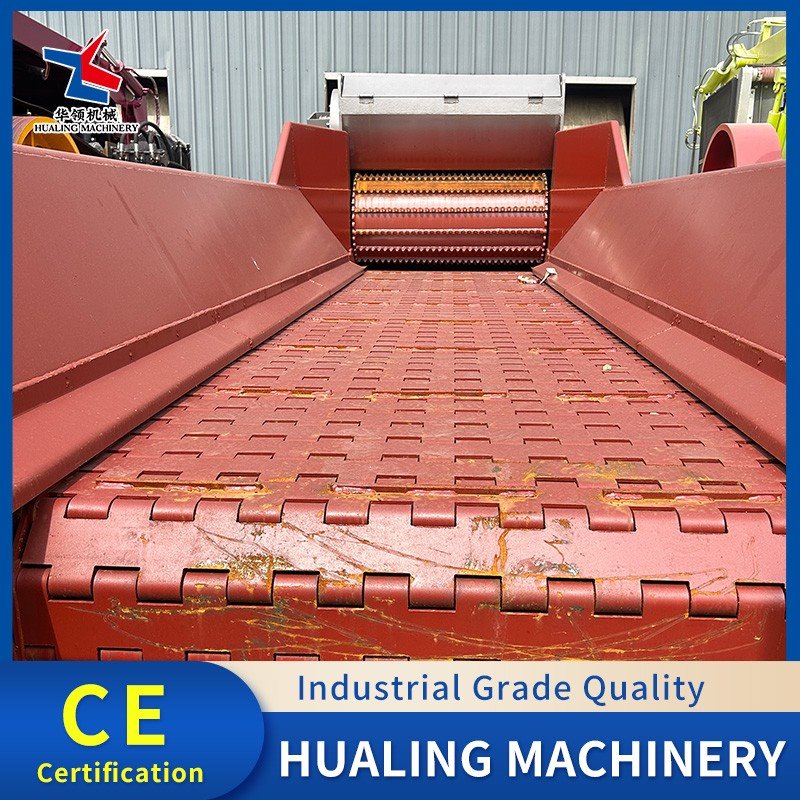

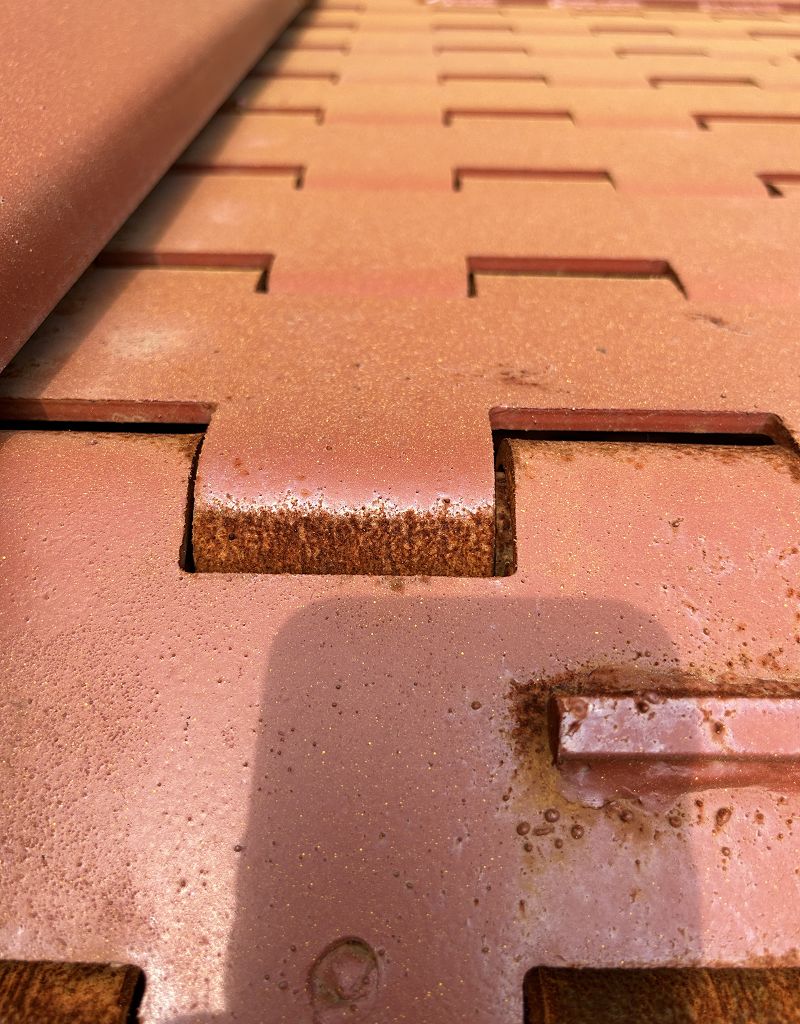

Fully hydraulic chain plate wood chipper uses heavy-duty thickened high-manganese steel stamped chain plates, which have strong load-bearing capacity, stable machine body, and better wood chip crushing effect
When the cutting load of the fully hydraulic chain plate mobile wood chipper is overloaded, the hydraulic system automatically reverses the chain plate to eject jammed material, eliminating the need for manual material removal
Mainly suitable for artificial board factories, paper mills, orchards, waste wood processing plants, etc
Product Details
01.
Vertical feed roller adopts a spiral wedge design, which can more firmly fix the material and reduce vibration and structural load at the rear of the machine
02.
Fully hydraulic chain plate mobile wood chipper can provide an additional protective distance feed platform and a unique bottom feed stop bar system
03.
Feeding system can effectively monitor engine speed, detect blockages, and automatically stop or reverse the feed roller when necessary
Product Supporting (Certificates/Pictures)
After-sales Service (Videos or Photos)
FAQ
1) What is the hourly output? Is the wood chip size adjustable?
A: Output is affected by the type of raw material, its moisture content, and the feeding speed. The size of the wood chips can be adjusted by changing the screen size
2)What is the lifespan of the chain plate? Does damage require complete replacement?
A: The chain plate is a spare part. It has a long lifespan when processing clean branches and wood; however, its lifespan is shortened when frequently used for processing construction templates, stones, or other materials with high impact. Local damage does not require complete replacement; only the deformed or cracked section needs to be replaced
3)What causes the high temperature display in the hydraulic system? How should it be handled?
A: Causes:
①The radiator is clogged with sawdust and dust, resulting in poor heat dissipation.
②Prolonged continuous operation at full load, causing continuous high pressure in the system.
③The hydraulic filter is clogged, resulting in high oil resistance.
Solutions:
①Clean all sawdust and dust from the radiator surface;
②Do not overload the machine for extended periods;
③Replace the clogged hydraulic filter
4)How long is the warranty for the entire fully hydraulic chain plate mobile wood chipper? Do you have a detailed list of vulnerable parts?
A: Except spare parts, the entire machine has a one-year warranty. Free repairs are provided for non-human-caused damage within the warranty period
Spare parts list: Cutting blades, bottom blades, chain plates, chains, sprockets, track plates, guide wheels, screens, pressure roller assemblies, etc
5)What is the lifespan of the flying cutter? Is replacement simple?
A: Service life is greatly affected by the impurities in the raw materials. Replacement is simple; the equipment has a built-in inspection port. After stopping the machine, disconnecting the power, and locking the machine, simply loosen the fastening bolts to remove the cutting blades
6)Does your company keep common vulnerable parts in stock?
A: Yes, we have inventory. We recommend keeping a set of commonly used spare parts on hand to avoid downtime while waiting for spare parts.
