Product Parameters
|
Model |
HL3600 |
HL3200 |
|
Maximum Processing Diameter (mm) |
2400 |
2000 |
|
Spindle Working Speed(r/min) |
760 |
760 |
|
Traction |
Mobile |
Mobile |
|
Cut Roller Size (mm) |
2150*750 |
1500*750 |
|
Number of Cutting Blades |
10 blades or 32 hammers |
6 blades |
|
Cut Blade Size (mm) |
465*220*20 |
465*220*20 |
|
Number of Bottom Blades (piece) |
3 |
2.5 |
|
Bottom Blade Size (mm) |
700*80*30 |
700*80*30 |
|
Dimensions (mm) |
7800*3600*3700 |
7000*3200*3500 |
Product Features and Applications

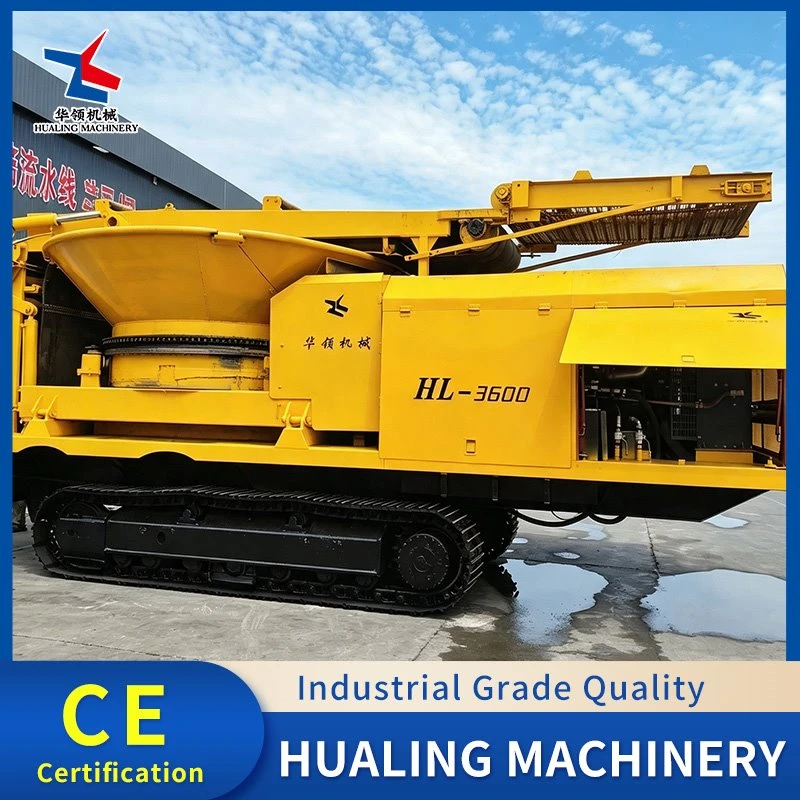

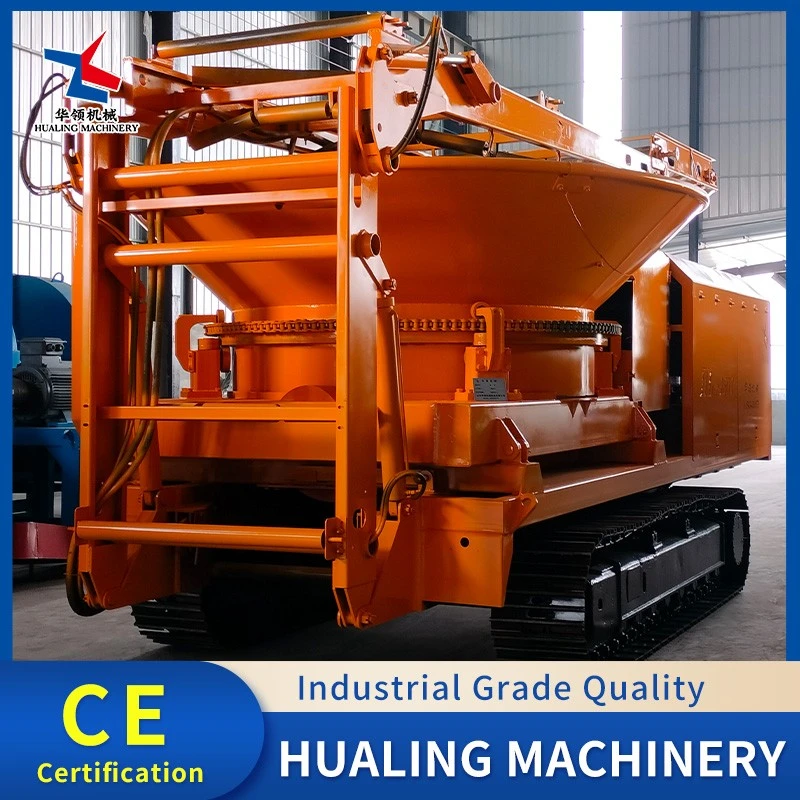

Mobile disc wood chipper with a spring-loaded rear axle and brake
The rotor of the disc wood chipper has a deflector blade, allowing it to process tree stumps with a larger diameter than similar products
Mobile disc crusher is used for processing tree roots, bark, and construction templates
Product Details
01.
Available in tire-mounted, vehicle-mounted, and tracked types, free movement, easy operation, and relocation anytime, anywhere
02.
Adopts an integrated design; disc wood chipper main motor, discharge belt, diesel engine, etc., are all on the vehicle chassis, resulting in a more compact structure and easier use
03.
Fully hydraulic system, the feeding system's lifting and downing and the discharge system's folding are all controlled by the fully hydraulic system
Product Supporting Documents (Upload Certificates/Pictures)
After-Sales Service (Videos/Photos)
FAQ
1) Can the mobile disc wood chipper be transported back to the factory and connected to three-phase power?
A: The factory only offers models with a single diesel power source. It is not recommended to add an electric motor later, as this will require significant modifications to the transmission, frame, and electrical control, resulting in poor compatibility. If factory electricity is required, select the dual-power version when ordering
2)What is the machine's hourly output?
A: Output depends on the type of material, its dryness/wetness, and the amount of impurities
3)Can the mobile wood chipper be used with a fully automatic biomass pellet production line?
A: Yes, it can be used with a pellet production line, depending on the machine model
4)Which is easier to relocate: the vehicle-mounted mobile model or the tracked mobile model?
A: For municipal and leveled construction sites, choose the truck-mounted model; for outdoor woodlands, muddy areas, and uneven terrain, choose the tracked model; for long-distance cross-regional travel, both require a trailer
5)Is it suitable for small factories just starting out?
A: It depends on the raw materials and the site
6)Is installation required after receiving the machine? Can the installation process be taught remotely?
A: Most of the machine is pre-assembled at the factory; major components do not require assembly. We can provide remote video tutorials, instruction manuals, and assembly videos
