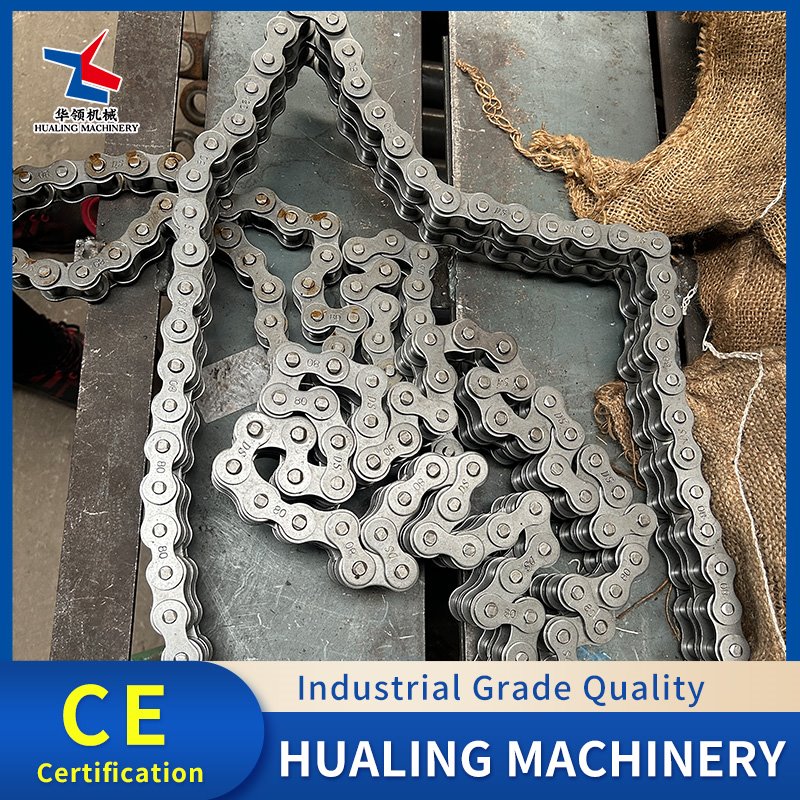

Product Parameters
|
Name |
Chain for wood chipper |
|
Chain Plate Thickness (mm) |
4.0/7.94/7.0 |
|
Diameter (mm) |
11.1 |
|
Minimum Tensile Strength per String (KN) |
112/152/191 |
|
Conveying Speed (m/s) |
0.08~0.3 |
|
Width (mm) |
500/650/800/1000/1200 |
|
Maximum Inclination Angle (°) |
≤22 |
Product Features and Applications
The metal structure is resistant to impacts from iron and gravel, and can easily handle nailed scrap wood and construction templates
The double chains evenly distribute the weight of the material, providing strong load-bearing capacity, continuous feeding, and high production capacity
Mainly used for lightly loaded branches, medium-sized logs, large-scale construction template production line, etc.

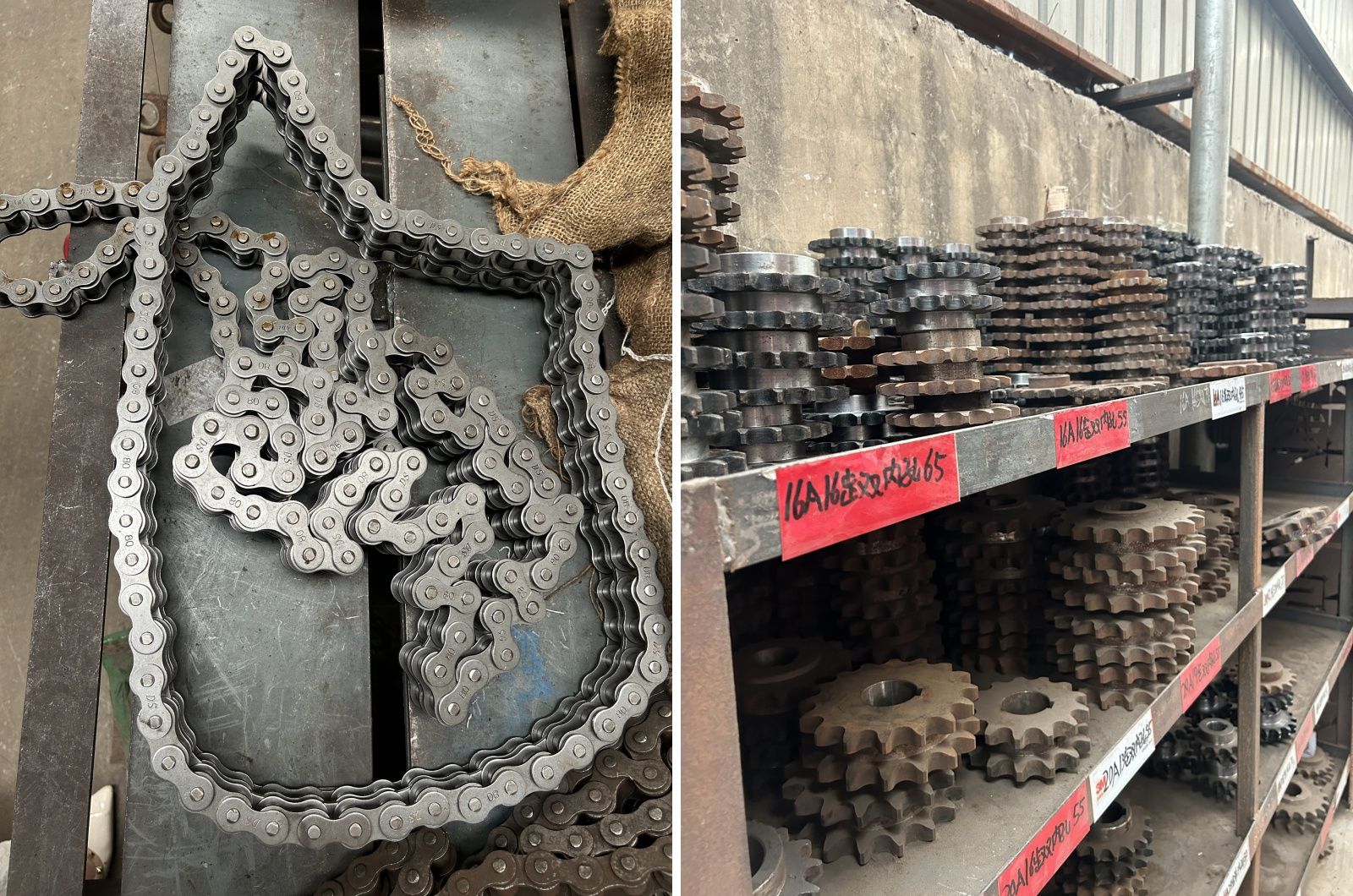

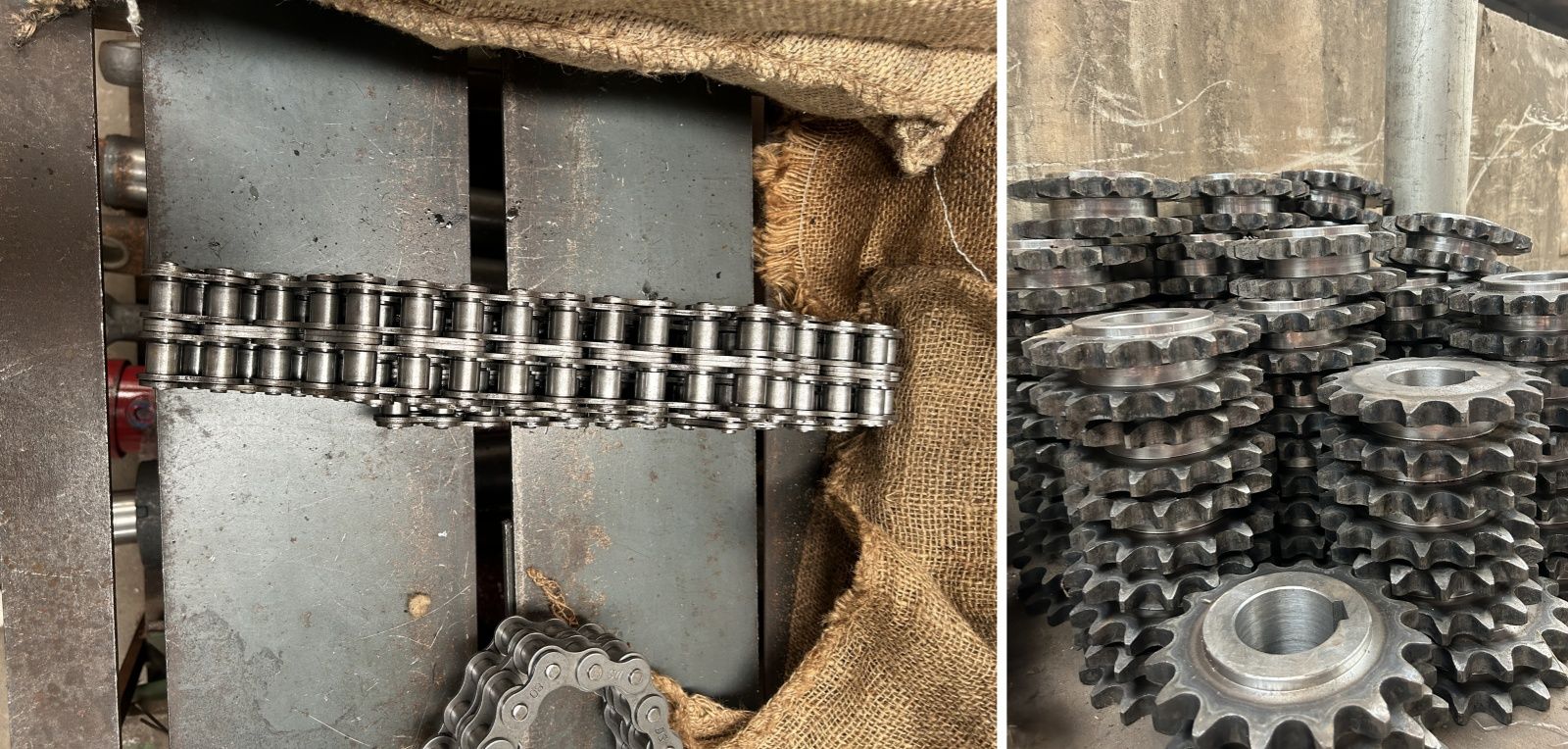

Product Details
01.
The outer chain plate features an integrated welded anti-slip tooth plate; wear can be repaired by welding
02.
The outer chain plate has integrated welded raised teeth that firmly grip slippery logs and bark, eliminating the need for manual assistance in pushing the material
03.
New and old chains must not be mixed. The length error between the left and right chains must be ≤0.5mm; otherwise, the chain plate will tilt and run off-center
Product Certification
After-Sales Service
Chain for wood chipper is a consumable part and is not covered by after-sales warranty
FAQ
1)What causes a chain to stretch and frequently skip teeth after a short period of use?
A: ① Overloading and heavy-duty impact feeding
②Inadequate lubrication
③Severe wear on sprocket teeth
2) What should I do if the chain pins easily rust and jam, making them unable to turn?
A: ①Regularly apply high-temperature waterproof lithium-based grease
②For outdoor, humid conditions, use stainless steel chains or oil-sealed chains with dustproof seals
③Disassemble jammed chains and soak them in diesel fuel or rust remover
3) Why is the chain making excessive noise and vibrating severely?
A: ①Improper chain tension adjustment
②Sprocket wear, unilateral tooth wear
③Localized stretching of the chain, damage to individual links
4) What is the normal lifespan of a chain?
A: A standard manganese steel heavy-duty chain plate chain lasts approximately 600–1200 hours
5)Is it feasible to replace only the chain without replacing the worn sprockets?
A: It is not recommended to replace only the chain and keep the old worn sprockets, as the risk is very high
6)What problems can occur if the chain is too tight?
A: ①The frictional resistance during operation doubles, causing the chain to stretch rapidly and become unusable
② The load on the motor and reducer increases
③The bearings at both ends continuously bear excessive axial tension
