Product Parameters
|
Model |
HL1400-800 |
HL1300-800 |
|
Walking Device |
tracked |
tracked |
|
Feeding System |
belt feed |
belt feed |
|
Hydraulic Tank Capacity (L) |
300 |
300 |
|
Power Unit |
24V |
24V |
|
Electrical Remote Control |
have |
have |
|
Air Cooling Radiator |
have |
have |
|
Dimensions (mm) |
11000*2490*3500 |
9000*2650*3300 |
Product Features and Applications

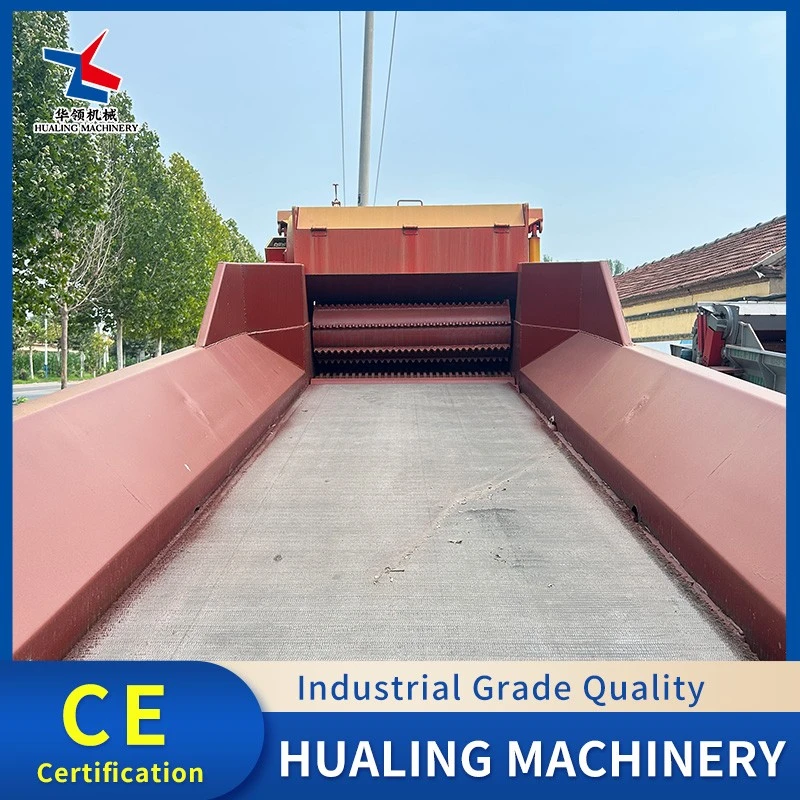

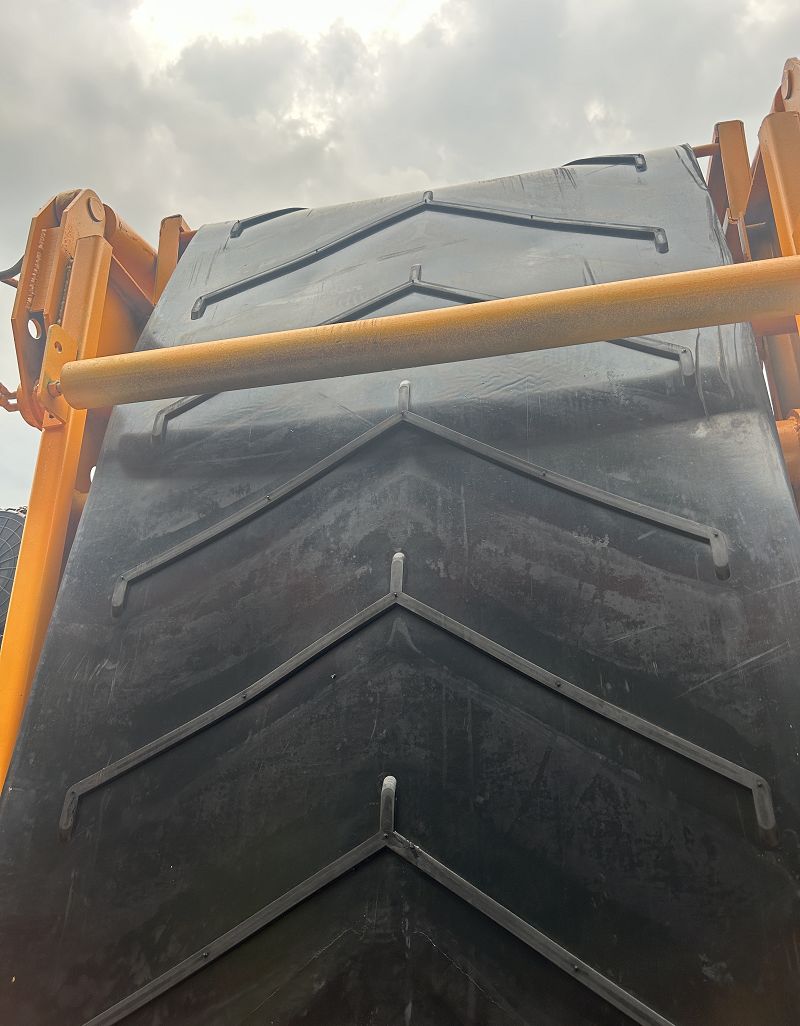

Belt feeding method, suitable for trees of various thicknesses, eliminating the need for manual pushing and reducing labor costs
Remote control operation, capable of autonomous movement on muddy paths, uneven terrain, wetlands, and mountainous areas, simple and convenient operation
Applicable raw materials mainly include forestry, orchards, industry, and papermaking
Product Details
01.

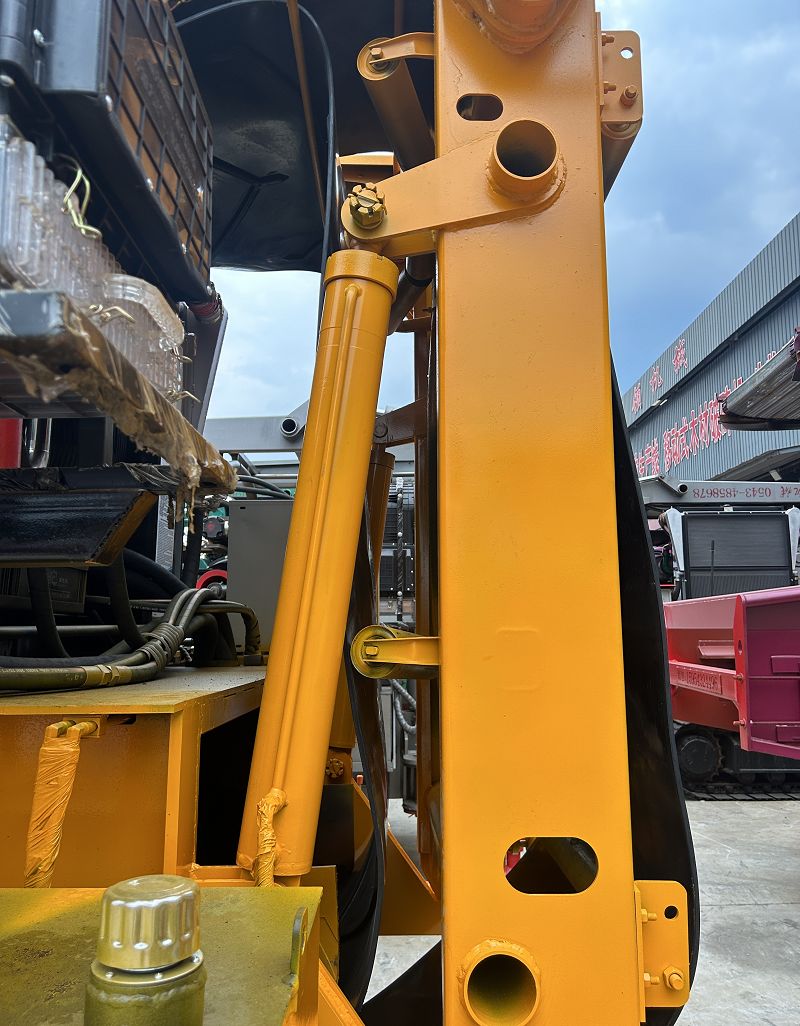

Uses an independent hydraulic pump station, equipped with a high-efficiency hydraulic radiator and precision hydraulic filter element to ensure hydraulic oil cleanliness and system heat dissipation
02.
Fully hydraulic tracked wood chipper uses heavy-duty welded cutter rollers, with bolts securing the rollers and blades for easy disassembly and replacement
03.
The entire machine is equipped with fully enclosed guardrails, hydraulic pressure overload protection, diesel engine overload protection, and safety features to mitigate machine malfunctions
Product Supporting Documents (Upload Certificates/Pictures)
After-Sales Service (Videos or Photos)
FAQ
1) What are the requirements for the export declaration product name and declaration elements?
A: Chinese Product Name: Fully Hydraulic Crawler-Type Wood Chipper (Fully Hydraulic Crawler-Type Wood Chipper)
English Product Name: Hydraulic crawler type wood chipper
Declaration Elements:
①Brand type;
②Export preferential treatment status;
③Use: For cutting and processing timber, branches, and construction templates into wood chips.

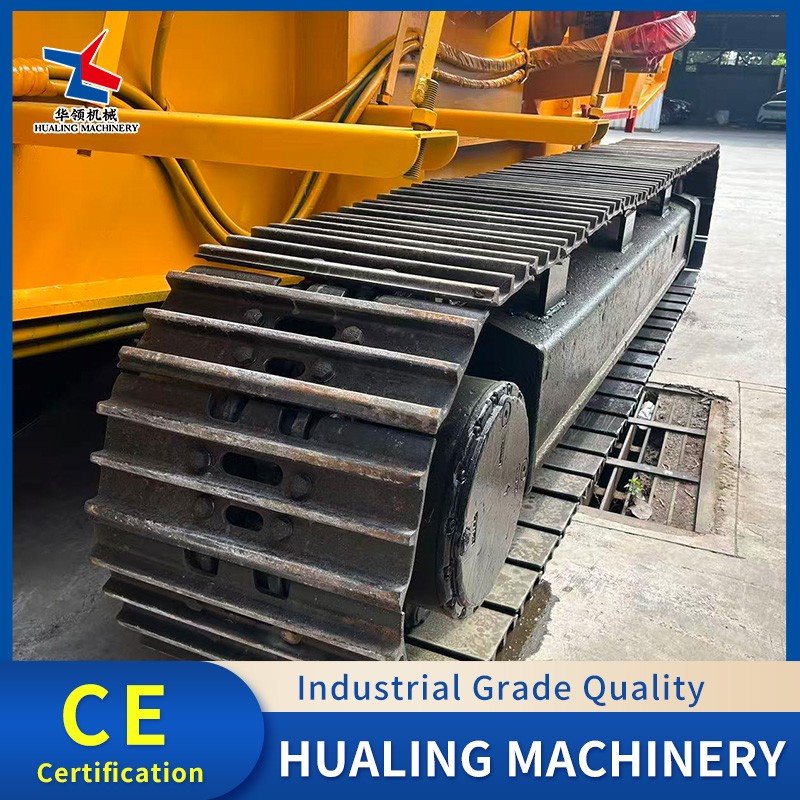

2)What are the core advantages of a fully hydraulic tracked walking device compared to a fully hydraulic wheeled walking device?
A: ①Stronger passability
②Better operational stability
③On-the-spot turning
④Adaptability to harsh terrain
3)Is the diesel engine fuel-efficient? What is the fuel consumption per hour under full load?
A: Fuel consumption is directly related to the diesel engine horsepower, the hardness of the feed material, and the feed rate. For small and medium-sized fully hydraulic tracked wood chippers, under normal full load conditions:
70-90 hp models: 8-12 L/hour;
100-140 hp models: 12-18 L/hour.
4) Are the fully hydraulic track shoes prone to wear? How often should they be replaced? How should they be routinely maintained?
A: Track shoes are considered wear parts. The rate of wear depends on the ground conditions: gravel and crushed stone surfaces wear out faster.
Replacement cycle reference: Approximately 800-1200 hours of normal operation in soil forests; replacement is recommended when the thickness wear reaches 1/4 to 1/3.
Maintenance:
①Clean wood chips, stones, and dirt from the tracks and track roller gaps after each operation.
②Regularly check track tension; ensure it is not too tight.
③Regularly apply grease to all wheel systems on the chassis.
5)How is the complete machine shipped? What size container can be used?
A: For small and medium-sized tracked wood chippers, the entire machine is not disassembled. It is rust-proofed and protected with stretch film. Tools and vulnerable parts are packed separately. For extra-wide and extra-height models, accessories are partially disassembled to fit a 40HQ container.
6)Can parameters be customized according to requirements?
A: Partial customization is supported.
