Product Parameters
|
Model |
HL216 |
HL217 |
HL218 |
HL2110 |
HL2113 |
HL6213 |
|
Roller Diameter (mm) |
700 |
700 |
800 |
1100 |
1300 |
1300 |
|
Number of Cutters (chips) |
2 |
2 |
2/3 |
2*2 |
3 |
6 |
|
Feed Size (mm) |
240*540 |
240*700 |
710*310 |
330*1100 |
400*1300 |
550*1480 |
|
Roller Speed (rpm) |
500 |
500 |
650 |
550 |
500 |
426 |
|
Feeding speed (m/min) |
38 |
38 |
35/38 |
33 |
38 |
35 |
|
Maximum diameter of raw material (mm) |
230 |
230 |
300 |
190 |
380 |
380 |
|
Wood chip length (mm) |
4-5,8-9,10-12 |
4-5,8-9,10-12 |
3-5 |
30 |
38 |
30-50 |
|
Production capacity (T/H) |
5-6 |
7-9 |
12-18 |
11-15 |
20-35 |
35-50 |
|
Main motor power (KW) |
55-6 |
75-6 |
110 |
200 |
250 |
315 |
|
Feed roller motor power (KW) |
3*1,4*1 |
3*1,4*1 |
5.5*14*1 |
7.5*2 |
11*2 |
15+18.5 |
|
Dimensions (mm) |
2700*2000*1400 |
2800*2100*1400 |
3400*2050*1800 |
2850*2799*1497 |
3670*2448*2050 |
3670*3300*2050 |
Product Features and Applications
Drum chippers are highly efficient, safe, reliable, and durable, fully utilizing the advantages of wood resources to create good economic benefits for customers
Primarily cuts branches, boards, bark, tree stalks, and various crop straws
Mainly used in particleboard plants, paper mills, fiberboard plants, biomass power plants, etc
Product Details
01.

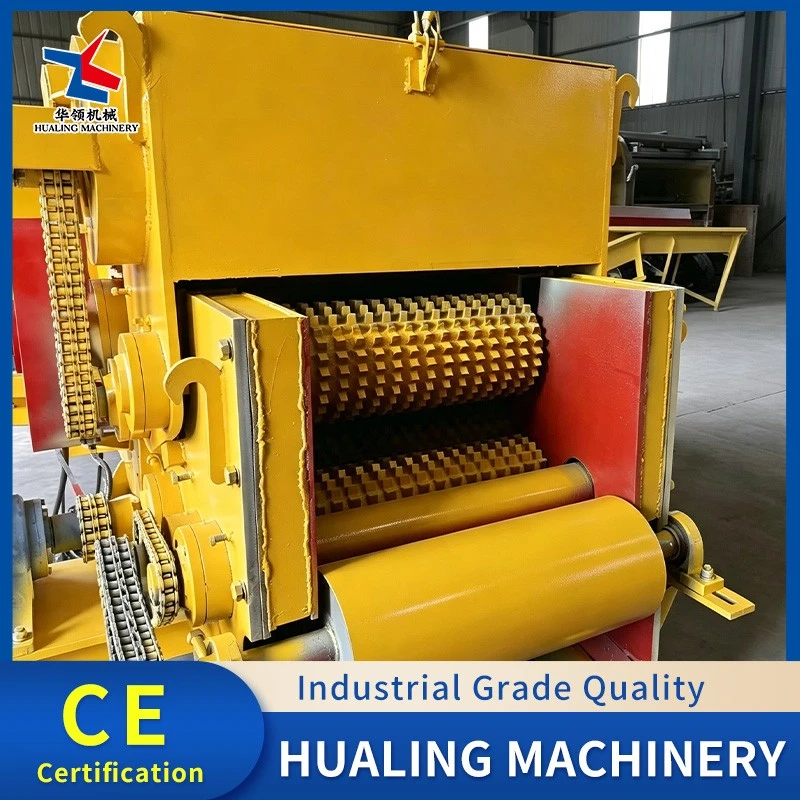

Uses a horizontal cylindrical cutter roller with spirally arranged cutters on the roller; the thickness of the wood chips can be controlled by adjustment
02.
Accepts all types of materials; it can process everything from small branches and miscellaneous materials to large logs, offering high production capacity
03.

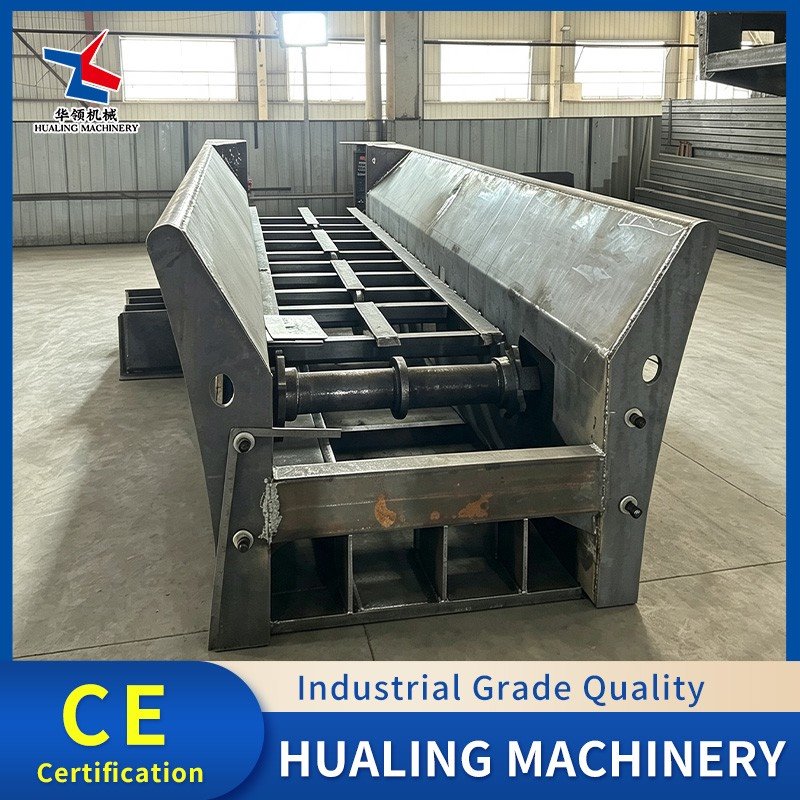

The machine cabinet is welded from iron plates, widened and thickened for increased wear resistance, requiring a large footprint and having a complex structure
Product Supporting (certificates, factory video)
After-Sales Service (Pictures or videos)
FAQ
1) What materials is it suitable for processing? What cannot it be processed?
A: Processable materials: Long, irregular, and loose wood materials such as board scraps, bamboo, plywood scraps, and furniture waste.
Not processable materials: Non-wood debris such as plastic, woven bags, rubber, and glass; large tree trunks with diameters far exceeding the maximum feed size of the equipment
2)How to choose between a drum chipper and a disc chipper?
A: Choose a drum chipper for materials with many miscellaneous and bent pieces; choose a disc chipper for regular logs and aesthetically pleasing wood chips
3)Can the machine be moved around?
A: A mobile version of the wood chipper can be made
4)What is the approximate hourly output?
A: Output is affected by the thickness, dryness, and impurities of the branches
5)Why is the output of the drum chipper decreasing and the discharge becoming obstructed?
A:①The cutting blades are severely dulled, increasing cutting resistance, causing feeding difficulties and obstructed discharge
②The machine cavity, discharge duct, and screen are clogged with sawdust and wet wood chips
③Insufficient pressure on the feed rollers causes material slippage and insufficient feed rate
6) What is the material of the throwing blades?
A: 6CrW2Si alloy tool steel
7)How should the chipper be stored after a long period of inactivity?
A:①Thorough cleaning: Empty all sawdust from the drum, duct, screen, and feed rollers.
②Lubrication and maintenance: Add sufficient lubricating grease to all bearings, reducers, and drive chains.
③Electrical protection: Close and lock the electrical control box, place a desiccant inside, and cover the entire machine with a rainproof and waterproof cloth
8) Which type of wood, dry or wet, is better for processing?
A: Semi-dry wood with a moisture content of 15%–28% produces the best processing results
