Product Parameters
|
Model |
1600-1000 |
1600-1200 |
2000-1200 |
|
Main Power (KW) |
160,185,200 |
250 |
250,315 |
|
Output (T) |
6-8 |
10 |
12-15 |
|
Rotor Diameter (mm) |
1000 |
1200 |
1200 |
|
Number of Hammers (pieces) |
144 |
144 |
168 |
|
Speed (min / r) |
1650 |
1650 |
1500 |
|
Motor Connection Method |
Belt connection, D-type 4-slot |
Belt connection, D-type 4-slot |
Belt connection, D-type 6-slot |
|
Electrical Cabinet Setup |
Soft-start frequency converter, automatic feeding with short-circuit, leakage, and overload protection |
Soft-start frequency converter, automatic feeding with short-circuit, leakage, and overload protection |
Soft-start frequency converter, automatic feeding with short-circuit, leakage, and overload protection |
|
Sieve size (mm) |
1600*1400*2piece |
1600*1400*2piece |
1900*1510*2piece |
|
Feed inlet size (mm) |
1600*700 |
1600*700 |
2000*700 |
|
Dimensions (mm) |
2700*2300*2750 |
2700*2300*2750 |
2740*2300*2750 |
Product Features and Applications
Large-scale, high-efficiency wood hammer mill with low noise and high output
Large wood hammer mill are made of tungsten carbide, making them more wear-resistant
Mainly used in the incense industry, wood-plastic composite materials, biomass organic fertilizer, feed and medicinal material processing, etc

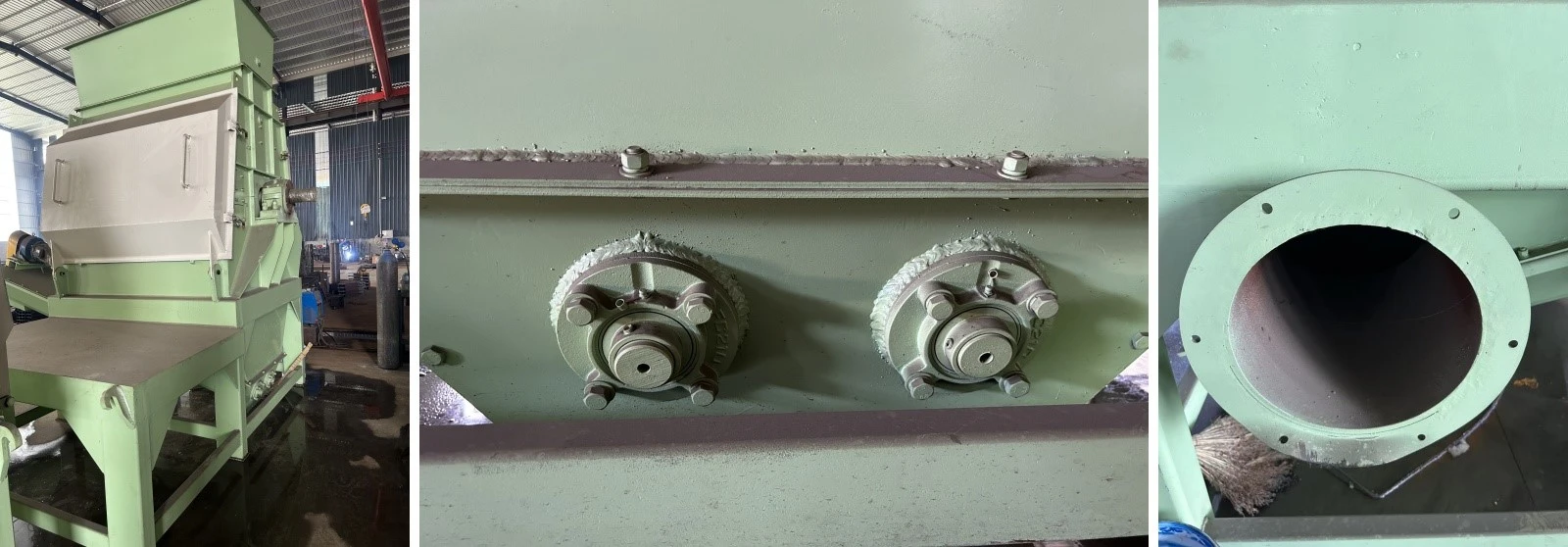

Product Details
01.
Large wood hammer mill uses alloy blades, which are durable and wear-resistant, increasing production capacity
02.
Wood hammer mill outputs uniform powder, without coarse or large particles, eliminating the need for secondary screening and increasing efficiency
03.
Standard configuration includes a cyclone dust removal system, which efficiently separates wood chips from the air, ensuring clean air is discharged and the wood flour is finally collected and stored
Product Supporting (certificates / factory video)
After-sales Service (Pictures or videos)
FAQ
Q: What is the smallest sieve size that the wood hammer mill can produce?
A: The smallest screen aperture for a standard custom-made wood flour mill can be 0.4mm
Q: Can the wood hammer mill be sold alone, without the cyclone dust collector?
A: The main unit can be sold alone, without the cyclone dust collector
Q: Is the fineness of the wood flour adjustable? How is it adjusted, and what are the adjustment methods?
A: ①Replace the bottom screen with one of different aperture sizes
②Adjust the gap between the moving and fixed blades inside the main unit
Q: What causes uneven particle size and frequent large amounts of material at the outlet of the wood hammer mill?
A: ①Severe wear and tear on the moving and fixed blades
②Inconsistent blade gaps, resulting in incomplete crushing in some areas
③Localized damage or cracking of the screen, allowing coarse material to leak out directly
Q: The blower of the wood hammer mill is running, but the output is very low or even zero?
A: ①The cyclone separator, pipes, and elbows are blocked by clumped, damp wood flour, causing airflow obstruction.
②The fan impeller is unbalanced due to material accumulation, resulting in reduced airflow and pressure.
③The main unit's screen is completely clogged.
Q: The bag filter is spraying dust outwards. What causes dust leakage?
A: ①The filter bags are damaged, burned, or have cracked seams.
②The filter bags are not installed correctly; the clamps are loose, or the tube sheet sealing gasket has fallen off.
③The fan pressure is too high, exceeding the filter bags' capacity
Q: What is the approximate hourly output of the machine?
A: It depends on the machine's power. Large wood flour mills have an output of approximately 10 tons per hour
Q: Can the wood hammer mill grind wood bark together with the wood flour? What are the disadvantages?
A: It is recommended to use a separate crusher to grind the bark for fuel, and not to mix it with high-quality wood for grinding
