Product Parameters
|
Model |
HL1000-800 |
HL1300-800 |
HL1400-800 |
|
Feeding System |
Chain Plate |
Chain Plate |
Chain Plate |
|
Main Motor Power (KW) |
110 |
132-160 |
185-250 |
|
Cutter Roller Diameter (mm) |
800 |
800 |
800 |
|
Cutter Roller Speed (r/min) |
600 |
600 |
600 |
|
Feed Inlet Size (mm) |
1000*400/1000*600 |
1300*600 |
1400*600 |
|
Maximum Diameter of Raw Material (mm) |
≤300 |
≤400 |
≤500 |
|
Hydraulic Furnace Volume (L) |
120 |
120 |
120 |
|
Hydraulic pump motor (KW) |
3 |
3 |
3 |
|
Dimensions (mm) |
18000*2200*2100 |
18000*2400*2300 |
20000*2800*2600 |
Product Features and Applications
The bottom blade is widened, making it more wear-resistant and extending its service life
Motor of chain conveyor wood chipper uses double roller feeding, resulting in more aesthetically pleasing chip shapes
Mainly used in large-scale biomass power plants, solid waste wood recycling plants, and large-scale bamboo and wood integrated processing plants
Product Details
01.

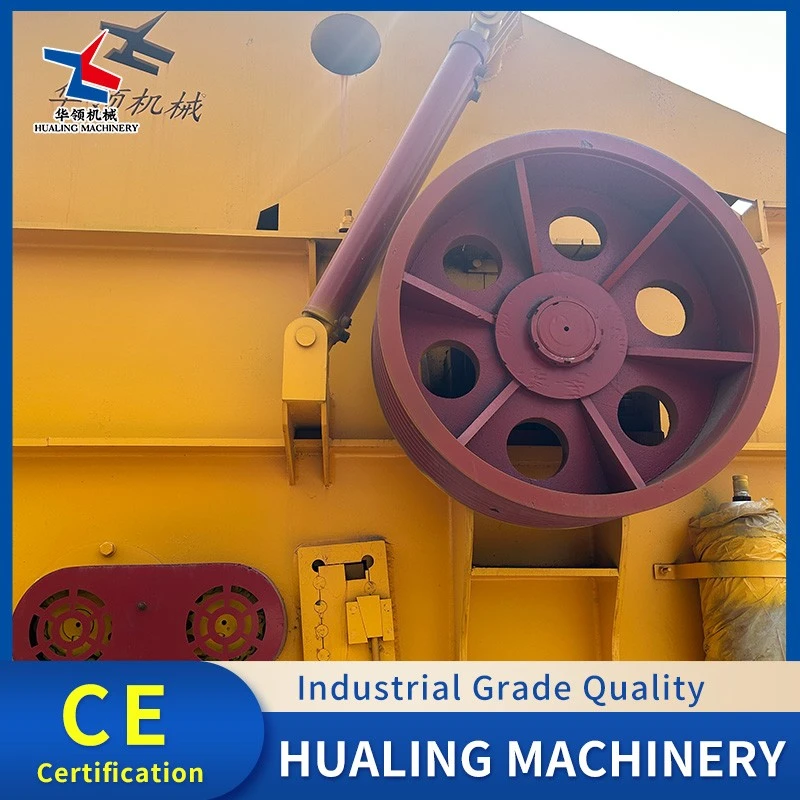

The engine uses a dedicated crusher engine, providing stronger power
02.
The feeding system uses a dual-cylinder suspension system, making feeding easier
03.

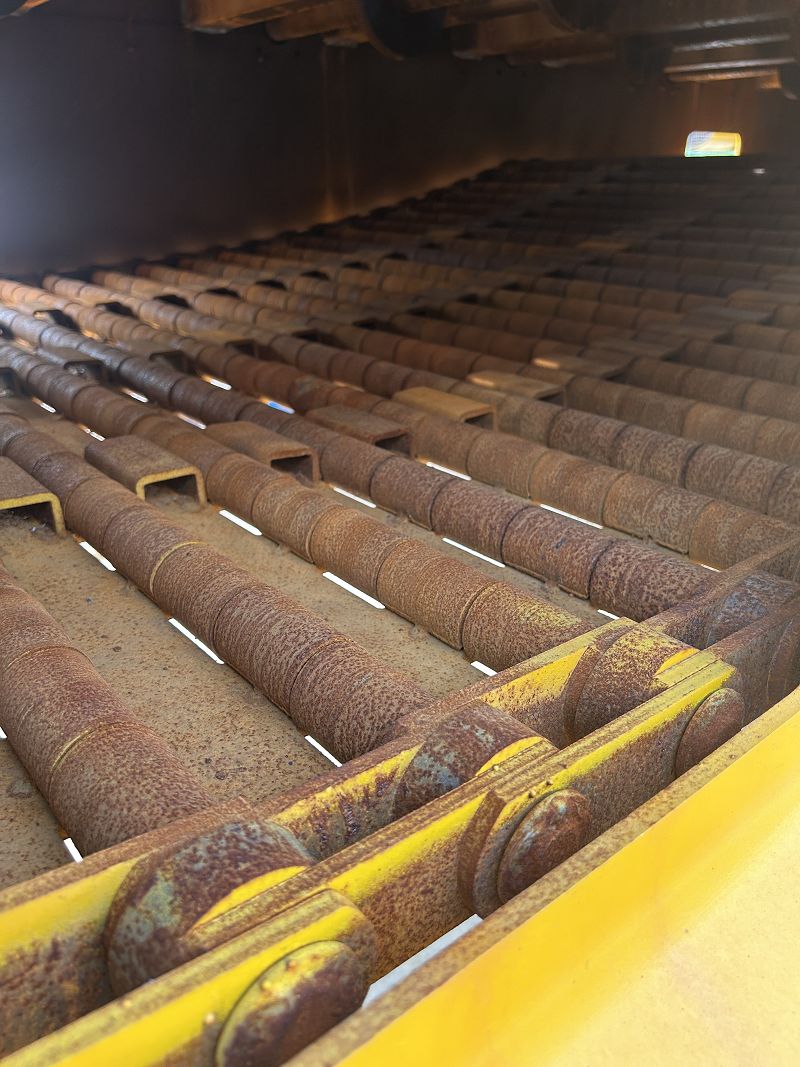

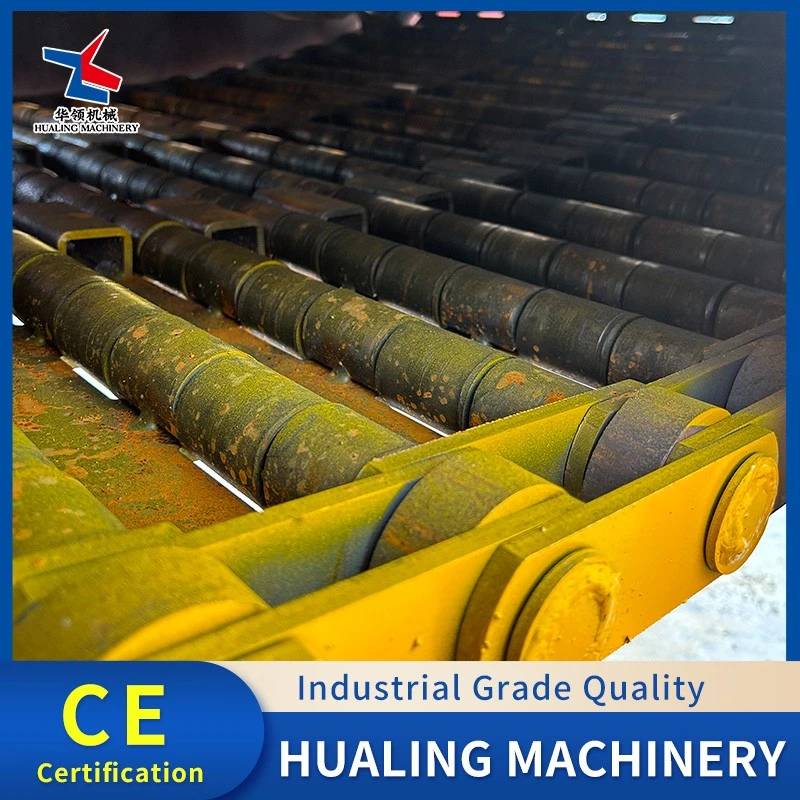

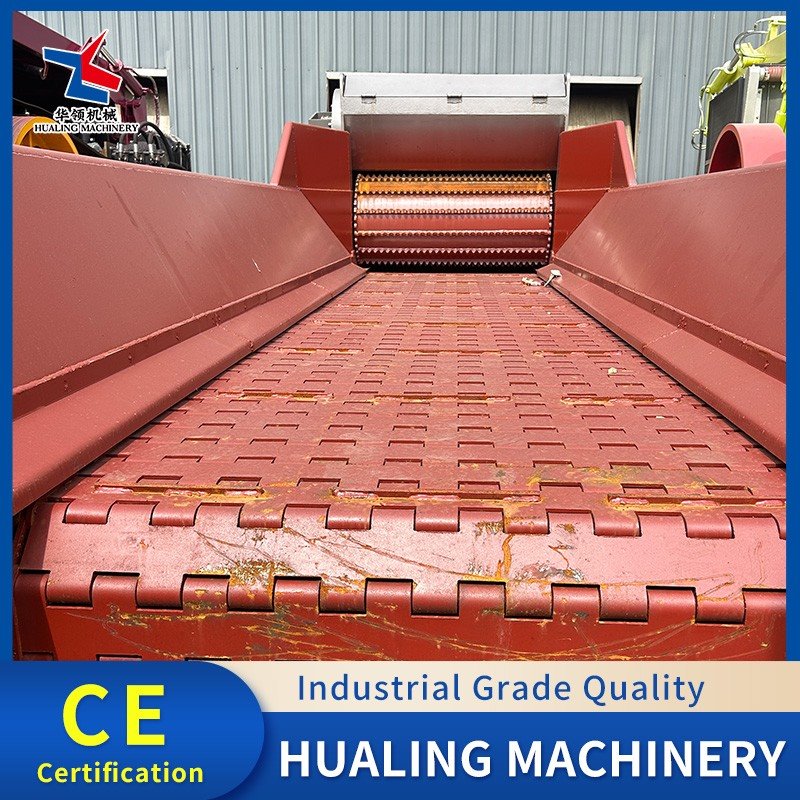

The metal chain plates are wear-resistant and durable, with high load-bearing capacity and long service life
Product Supporting (Certificates/Pictures)
After-Sales Service (Videos or Photos)
FAQ
1) What are the advantages of a motor of chain conveyor wood chipper compared to a motor of belt conveyor wood chipper?
A: ①More resistant to hard objects
②Greater clamping force
③Longer service life
④Stronger overload tolerance
2)What is the hourly power consumption of a motor-driven model?
A: Power consumption mainly depends on the power of the main cutting motor. The machine consumes very little power when idling, not at full load
3)Are there any wood chippers with lower noise levels?
A: Wood chippers are cutting and crushing equipment. The rotor cuts at high speed, so they naturally produce considerable operating noise and cannot be completely silent
4)Can the voltage be changed or customized?
A: Yes, the voltage can be customized
5)Can a motor of chain-plate feeding model be replaced with a motor of belt feeding model?
A: Retrofitting is not recommended. The frame, pressure roller assembly, transmission reducer, and load-bearing structure of the chain-plate feeding model are designed for the high load of the chain plate. The installation dimensions and load-bearing logic of the belt-driven feeding assembly are different
6)Will chain-plate feeding cause chain jamming? How can chain jamming be prevented?
A: Foreign objects, large hard objects, and clumps of sawdust can cause chain jamming
Preventive measures:
①Strictly prohibit large iron blocks and coarse stones from entering the feed inlet.
②Clean the chain and chain plate gaps of sawdust, bark, and other debris after each shift.
③Regularly lubricate the chain and sprockets with grease
7)For the same model, how much higher is the output of a motor-type chain-plate wood chipper compared to a motor-type belt-driven wood chipper?
A: Assuming the machine body and rotor are identical, and using clean tree branches as raw material, the output difference is not significant
8)What should be done if the chain plate steel plate of a motor-type chain-plate wood chipper deforms?
A:①Slight deformation: If the steel plate is slightly warped, stop the machine, disassemble it, straighten and correct it, and continue using it.
②Severe deformation, dents, twisting, or cracking: Replace the corresponding chain plate directly. Do not continue using it.
